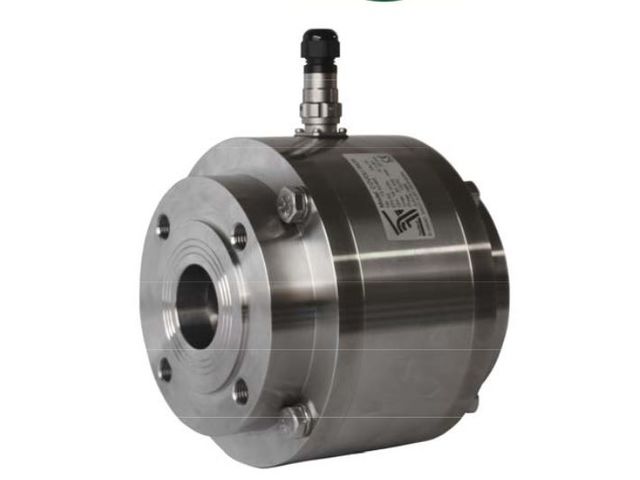

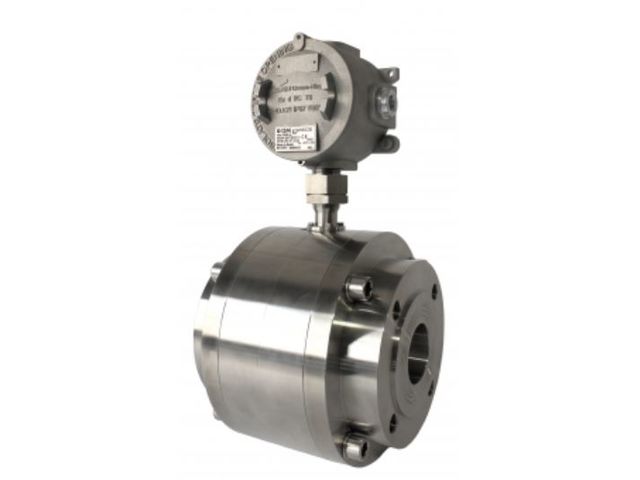

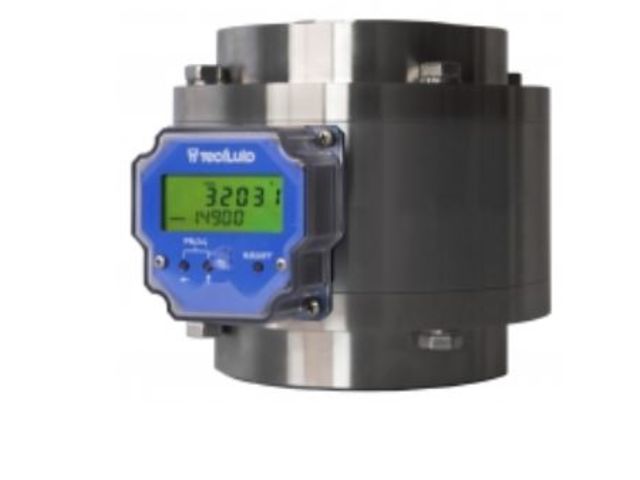

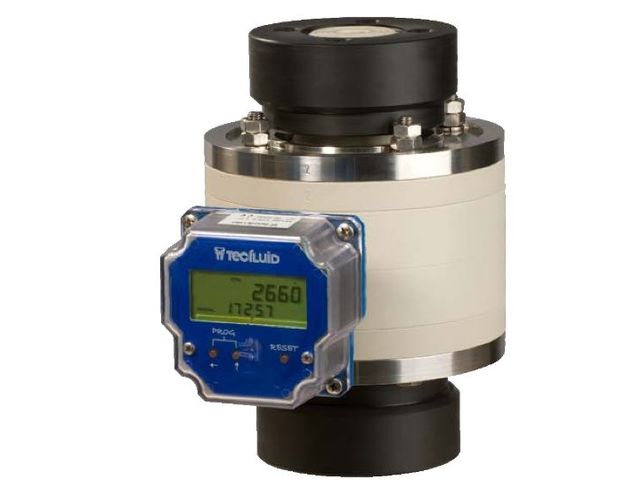

Volumetric counter Series COVOL

Water meters

Ask for a quote

Presentation

Volumetric counter for liquids, even with high viscosity up to 120000 cP, with or without electrical conductivity. It can be easily adjusted on site and is suitable for CIP processes. Application areas: Flow measuring and volume totalizer of condensate steam and fuel, tank filling… Widely used in oil industry, measurement of honey, chocolate, paint, resin, inks... Technical specifications:

Measuring range:

10 l/h … 60 m3/h H2O

Accuracy:

+-0,8%

Connections:

DIN2501 flanges DN10…DN100
Others on request
BPS or NPT threaded connections
Sanitary connections according to DIN 11851
Clamp ISO 2852… Others on request.

Materials:

Body: EN 1.4404 (SS 316L), PVC, PP & PTFE
Piston: PTFE-graphite, Aluminum, Bronze, PVDF

Viscosity: up to 120000 cP

Reed switch pulse output

Compatible with associated electronic converters CIP / CIP II / MC-01 / MT-02 / DFD / CI-420 / CP420R and CH420R / CP420L and CH420L

Considered as “Simple Apparatus” according to ATEX

Options:

Design for high pressure on request
Special design for converters from different manufacturers
Heating-cooling chamber on request

Technical features

Download the complete technical features

INTERNET USERS ALSO CONSULTED ON THE CATEGORY WATER METERS

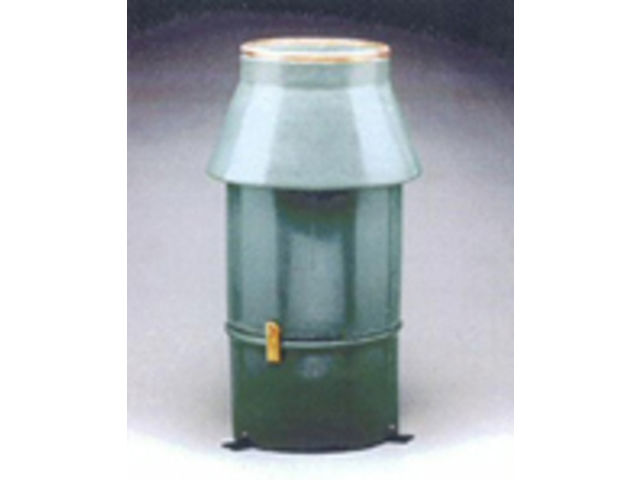

Rainfall sensor

Ask for a quote

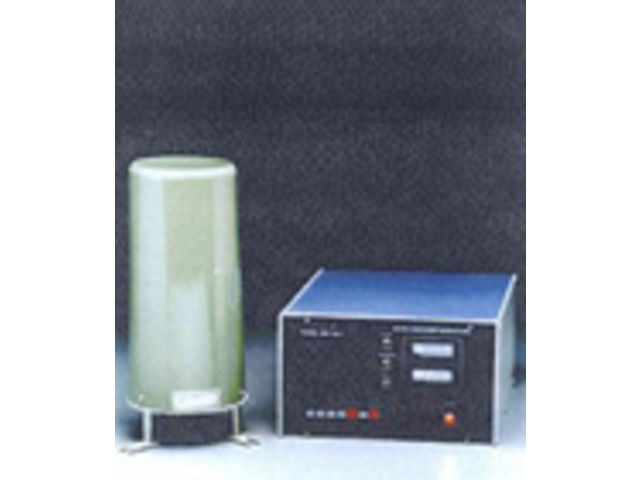

Rapid response raingauge
