TEMEX

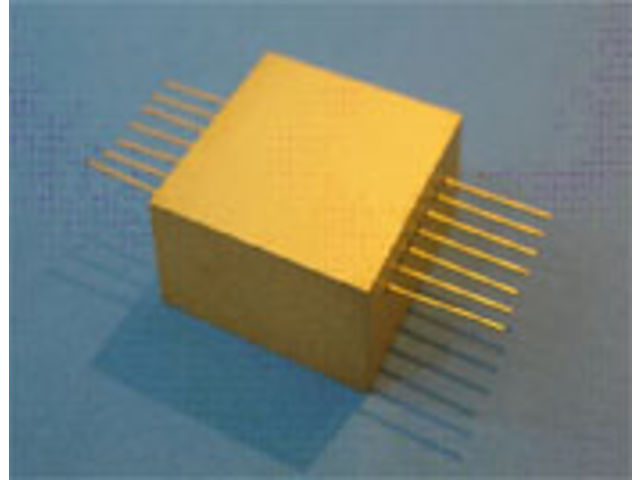

Voltage Controlled Crystal Oscillator Spatial Flat Pack

Quartz

Ask for a quote Receive Documentation Contact the supplier

VCXO Space Flat Pack main applications are space synthesizers, and transponders. Our VCXO is featured by excellent pulling range of +/-200ppm, good aging characteristics of +/- 1 - +/- 5ppm per year , low power consumption of 0.1W, compact package size, and weight of 20g. VCXOs Space Flat Pack are manufactured in accordance with MIL-PRF-55310 (Class 1, type 2, level S).

Technical details:
Flat Pack Package, SMD discrete technology
Case type: 20.0mm x 20.0mm or 25.0mm x 25.0mm
Frequency Range: from 5MHz to 150MHz
Temperature Range: from -40°C to +85°C
Output Wave Form: sine 50 Ohms or square wave
Supply Voltage: +5V or 12V
Shock: 1000g, 0.3ms
Random vibration: 50g rms from 20Hz to 2kHz
Radiation: TID 100 krad
