Vertical injection molding machine hydraulic : CM 40

Vertical injection molding machine hydraulic : CM 40 - WITTMANN BATTENFELD France

Vertical injection molding machine hydraulic : CM 40 - Hydraulic injection molding machine

Vertical injection molding machine hydraulic : CM 40 - produit présenté par WITTMANN BATTENFELD France

Vertical injection molding machine hydraulic : CM 40 Brand: WITTMANN BATTENFELD

Hydraulic injection molding machine

The CM 40 of Wittman has a tie bar-less vertical clamping unit in a compact design. It comes with a servo valve controlled, vertical injection units from the TM and HM series to process TPE and...

Ask for a quote

Presentation

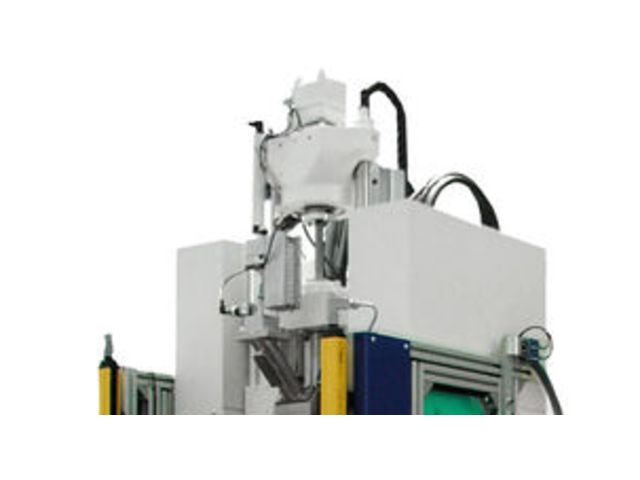

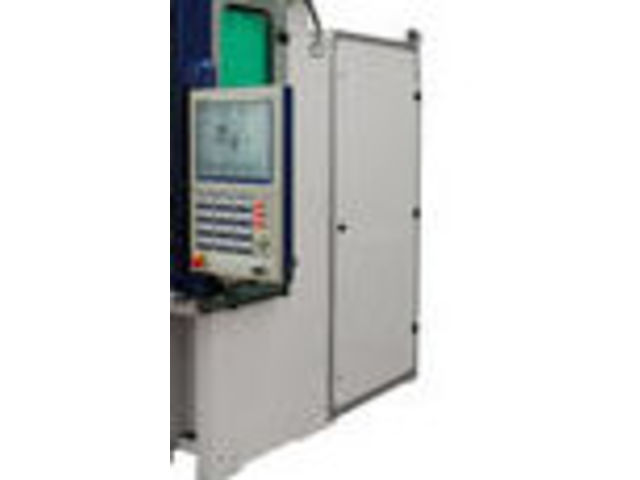

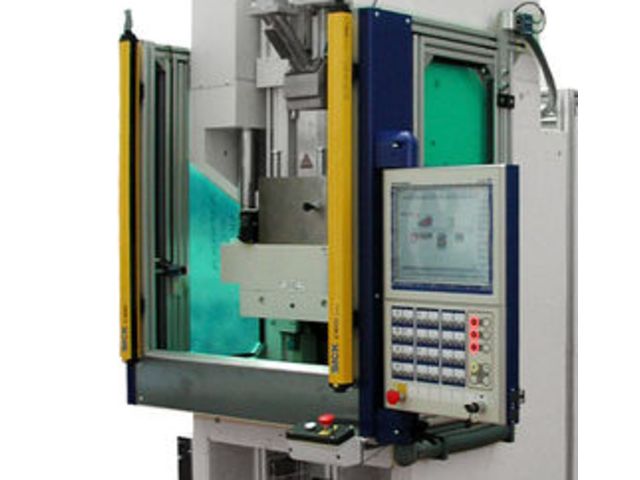

The CM 40 of Wittman has a tie bar-less vertical clamping unit in a compact design. It comes with a servo valve controlled, vertical injection units from the TM and HM series to process TPE and various conventional thermoplastic resins.

This unit has a precise platen parallelism across the entire stroke through support through its linear guides to provide high opening and closing speeds. The design of the injection unit can either be horizontal or vertical along with carriage cylinders positioned opposite each other for momentum-free nozzle carriage.

Furthermore, it has direct screw drive in its low-speed hydraulic motor with optimal adaptation to meet individual plasticizing demands. This perpendicular clamping unit consists of an ergonomic structure in partially automatic operations with a decreased running altitude of 1,000 mm.
