Vertical FORM/FILL/SEAL machine in pillow pouches M3200 FOOD

Packaging machines

It provides a selection of 2-axis units suitable for various applications starting from the low cost RLAs to the precise TURBOSCAN and extremely fast SUPERSCAN, SUPERSCAN-SC and the water tempered...

Ask for a quote

Presentation

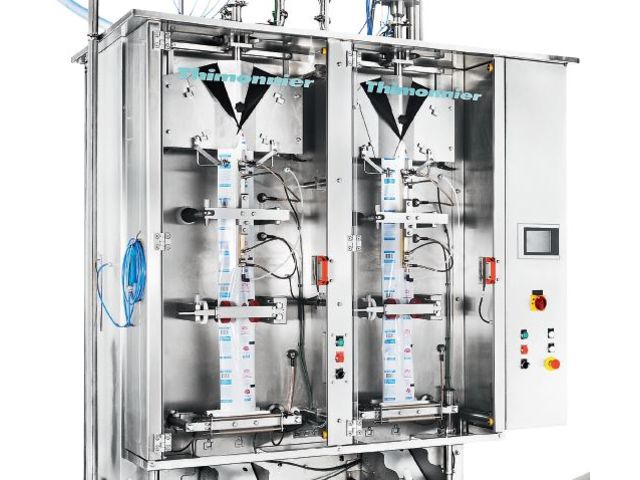

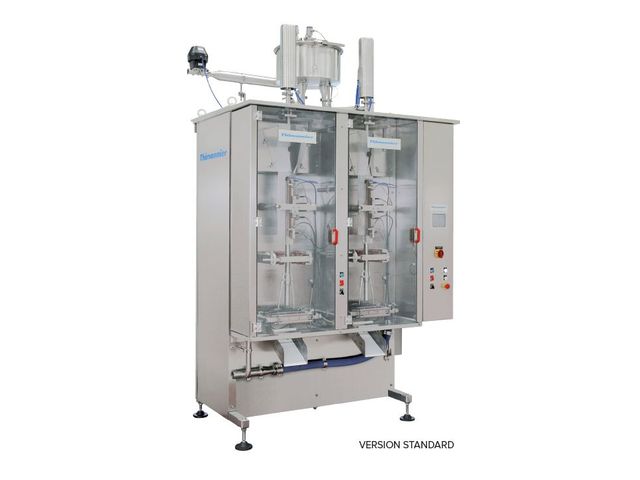

Vertical automatic double headed filling machine :

THE M3200 is perfect for forming, filling and sealing pillow pouches using rolls of polyethylene.

The pouches are continuously fi lled from an over tank headed with constant level and controlled by a proportional valve and a level sensor.

Thanks to the use of servodrives technology, M3200 machine is very flexible and allows to reach high output and high dosing accuracy.

Strong frame made from steel profi les covered with stainless plates for maximum rigidity and exceptional life.

A Clean-in-Place (CIP) has been integrated into the M3200’s design.

All of the parts that come into contact with the product are built from stainless steel.

STANDARD EQUIPMENTS :

- Film disinfected by germicidal UV tubes before being shaped
- Clean in Place (CIP)
- Electrical components and PLC are located in a separate
air-tight cabinet with a control touch screen.
- Alarm messages are displayed on control screen: end of reel,
low level in bu er tank, access doors open…

Liquid products
Pasteurised Or Esl Milk, Water, Fruit Juices…
Viscous Products
Curdled Milk, Liquid Yoghurt, Nectars, Cream, Greek Yoghurt,
Kefir, Smetana, Rayeb…
Pasty Products
Sauces, Soups, Syrups…

OPTIONS :
Coding device / 3 coding types are available:
- Pressure stamp on the longitudinal seal
- Programmable thermal transfer
- Ink jet
Dosing by pump for viscous products
(helicoidal, lobular or fl exible impellor pump)

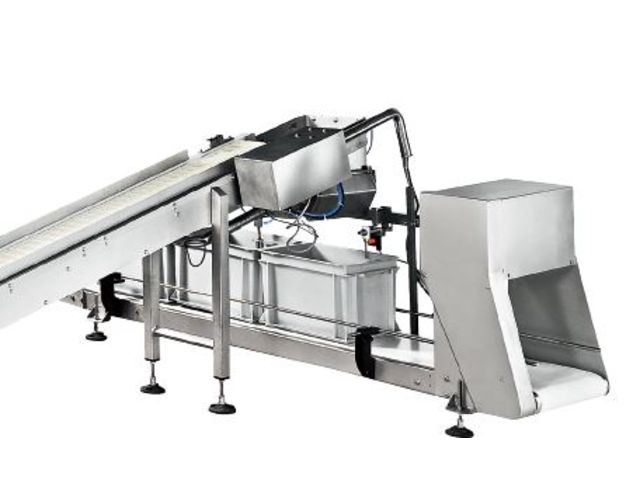

Exit conveyor
Automatic packer: automatic pouch packing system with a counter.
E.S.L. Option (Extended Shelf Life):
Steril airfl ow and sterilization of the piping
RAS connection via modem
Reel replacement without stopping the machine
