VentusOGI Infrared Camera for Methane or Volatile Organic Compounds leak detection

Thermal closed circuit TV camera

Compact sensor for smallest quantities with an ultra-compact transmitter. Cubemass C is the ideal sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics. Neither...

“ - High resolution image (VGA) and high sensitivity (NETD ideal for UAV or robot application - Two optics available: 25mm F/1.5 and 50mm F/1.5 - Complete image processing with digital zoom 4X, image stabilisation, contrast enhancement (CLAHE), false color palette - Compliant with EPA 0000'A standard ”
Ask for a quote Receive Documentation Contact the supplier

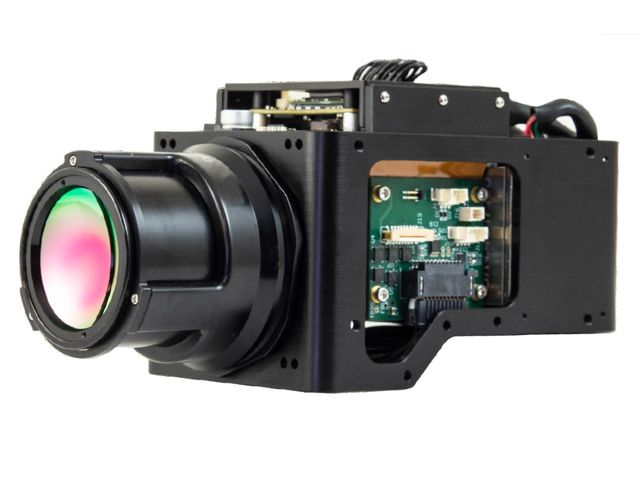

The VentusOGI Band II infrared gas detection camera is designed around a cooled HOT MWIR sensor with 640x512 resolution and 15µm pitch. It is one of the most compact and versatile products in its class for the detection of methane or volatile organic compounds that meets the requirements of the EPA 0000'a regulation.

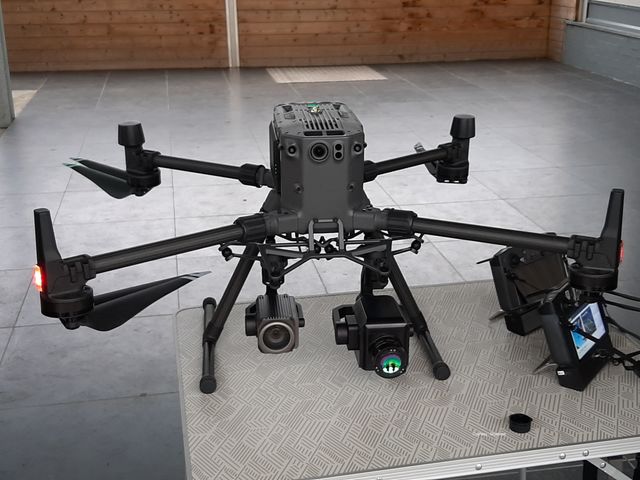

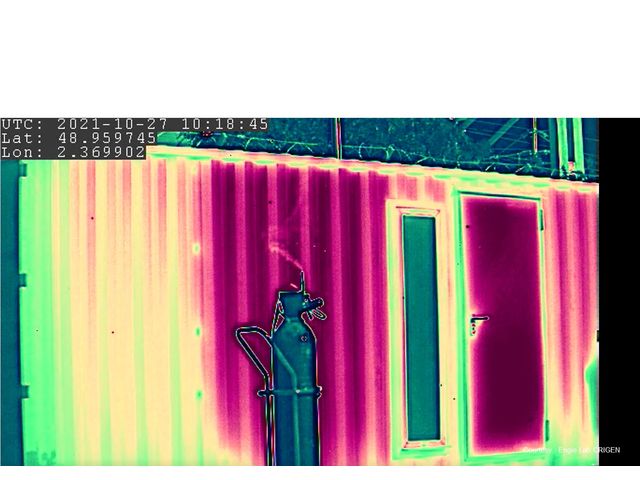

Offering a response in the narrow 3.2-3.42µm spectral band (uncooled LWIR), it provides users with a sensitive leak imaging tool for markets such as the oil and gas industry (transportation, storage, processing), biogas industries, landfill or sewage treatment plant monitoring (residual sludge),... It is particularly suitable for carrying on aerial platforms such as multi-copter drones or helicopters.

The VentusOGI camera has the following main characteristics:
- NETD <28mK
- Image frequency 30Hz
- PAL/NTSC analog and 14-bit digital output

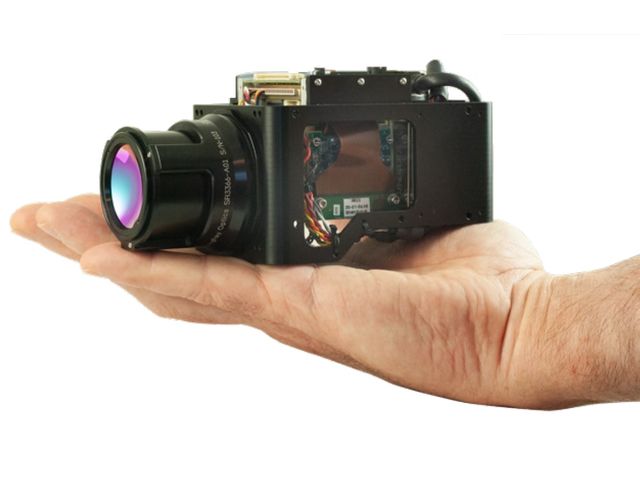

- Small size (148x71x73mm) and low weight (542 grams with HFOV 21.7° F/1.5)

Several versions of optics are proposed for this camera (25 and 50mm) and it is possible a 4X digital zoom

Its export classification is dual use (6A003b.4)

Sensor microbolometer HOT MWIR resolution 640x512 at 15µm step Spectral response band 3.2-3.42µm NETD : nominal 28mK f/1.0 Image frequency : 30Hz Video output PAL/NTSC - MJPEG encoding H.264 (video storage on microSD 32GB) Power consumption: 6W (12W peak) at 12VDC Control and command via RS422 Ethernet Available optics: 25 mm and 50 mm F/1.5 Operating temperature: -35 to +65°C Dual use export license (6A003b.4) - Non ITAR
Download the complete technical features

Oil & gas Biogas Petrochemical industry Waste Landfield surveillance
