Vehicle bridge 10T

Cable grommet

“ Easy to instal and economic for Vehicules Total Weight < 5000kg ”

Ask for a quote

Presentation

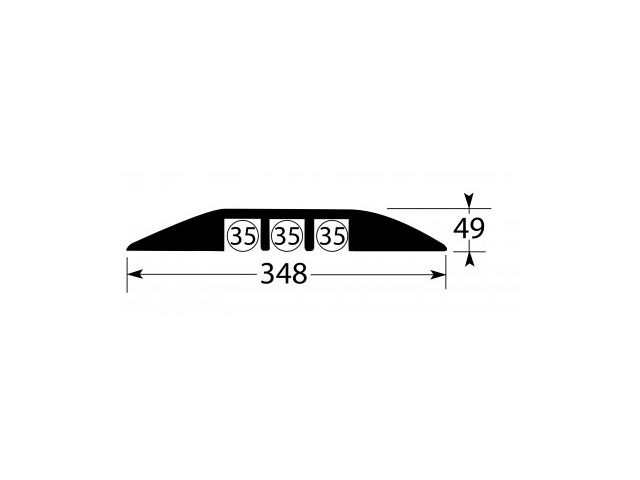

PV 35-3:

Easy to instal and economic for Vehicules Total Weight < 10T

- Length of 98 cm
- Black rubber
- Easy to install
- Easy to put together 2 elements thanks to 2 dovetails
- For light vehicle with total Weight under 5000kg

Vehicle bridges cover cables laid on the ground
Ideal for workshop. Can be used in indoor or outdoor application for vehicle crossing.
Rubber is stried to securise pedestrian crossing
3 ducts of Ø35mm - Weight of 9.90kg
Dovetail length: 2 cm

Max cable Ø : 35 mm
Number of channels : 3
Width : 348 mm
Height: 49 mm
Length: 98 mm
Weight: 9,5 kg

Code PV035C98

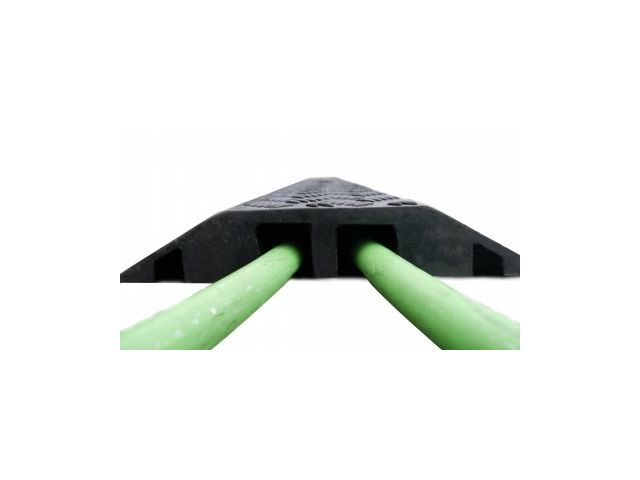

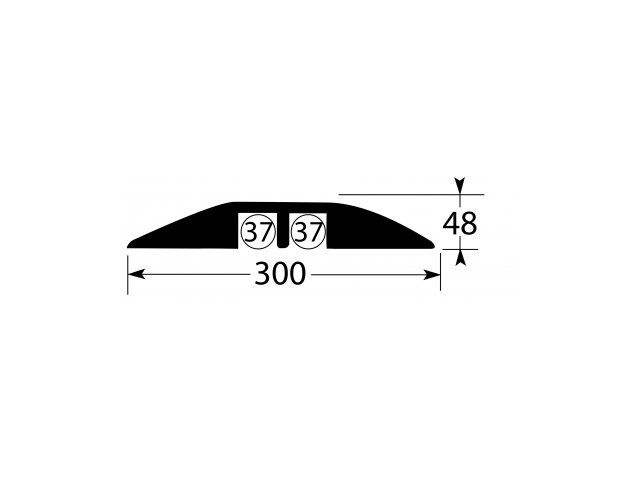

PV 37-2:

For light-duty vehicles (Total weight < 5 tons)

- Length of 98 cm
- Black rubber
- Easy to install
- Easy to put together 2 elements thanks to 2 dovetails
- For light vehicle with total Weight under 5000kg

Vehicle bridges cover cables laid on the ground

Ideal for workshop. Can be used in indoor or outdoor application for vehicle crossing.

Rubber is stried to securise pedestrian crossing

2 ducts of Ø37mm - Weight of 9.40kg

Max cable Ø : 37 mm
Number of channels : 2
Width: 300 mm
Height: 48 mm
Length: 98 mm
Weight: 9 kg

Code PV037B98
