Variable area flowmeters Series M21

Gas flowmeters

Ask for a quote

Presentation

Variable area metal tube flowmeters for low flows of liquid, gas and steam. Metallic construction. High performance measurement under extreme working conditions of temperature and pressure. Indication by means of magnetic coupling, low pressure drop and float damping mechanism for gas service. Flow measurement in vertical pipes. Application areas: Suitable for all kind of industries for low flow measuring. Technical specifications:

Suitable for vertical upwards flow

Indicator housing in aluminum. Available in SS 316L on request

Measuring ranges:

0,4 l/h … 1000 l/h H2O
12 Nl/h … 30 Nm3/h air

Accuracy:

+-4% f.s.

Connections:

¼” … ¾” BSP, NPT
Sanitary connections DN10 … DN25

Materials:

EN 1.4404 (SS 316L)

Local indication

Options:

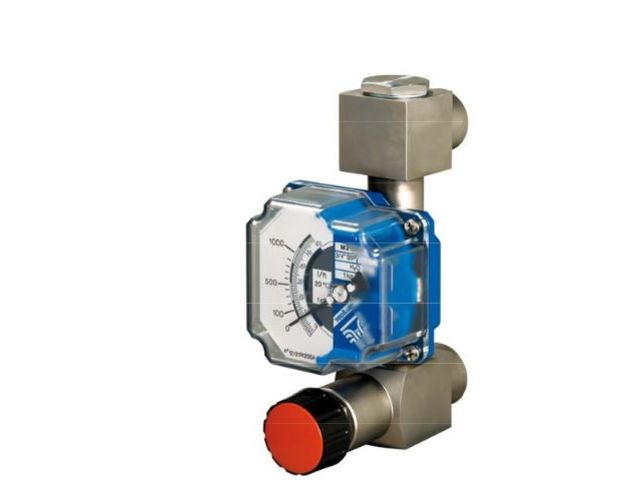

Regulating valve
Design for high pressure on request
1 or 2 adjustable inductive switches
Electronic transmitter with 4-20 analog output 2 wires, Ex version on request
Constant flow regulator RCD or RCA
