Vacuum Tribometer: VTHT / VTRB

ECO 5 (Sn99-Ag0.3-Cu0.7) is a high performance lead-free alloy based on tin, copper and silver, primary metals, which give it a high degree of fluidity. The composition of this alloy complies with ISO...

“ Additional capabilities: High temperature model (1000°C max temperature) Range of ball/pin holders available Contact depth measurement High speed motor (1500 rpm) Electrical contact resistance ”

Ask for a quote

Presentation

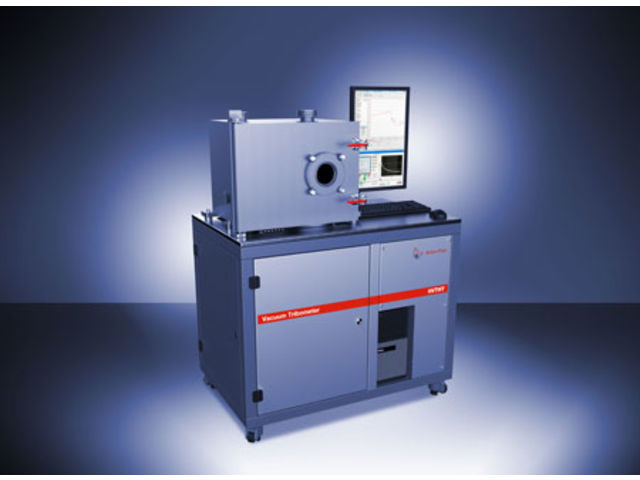

The Vacuum Tribometer is used to determine the sliding life of self-lubricant coatings as well as the friction and wear behaviour of solid-state materials or hard coatings with averaging time, contact pressure, velocity and temperature under vacuum conditions.
Anton Paar Tribometers have proven their reliability worldwide in over 1000 laboratories, for studying:

High vacuum environment down to 10e -7 mbar
New materials (ceramics, metals, polymers)
Self-lubricating systems
Quality assurance

Technical features:
Precisely calibrated friction and wear measurements
Stable contact point and no parasitic friction
Variable sample sizes and shapes
Automatic shut-off (max. track length / max. friction coefficient)
Testing in liquids and controlled humidity
Testing compatible with DIN 50324, ASTM G99 and ASTM G133
Powerful software package for PC

Technical features

Vitesse de rotation : 1 à 500 t/min (1500 t/min en option) Couple maximal : 450 mNm Force de friction (capteur LVDT) : jusqu'à 10 N (20 N en option) Force normale maximale : 10 N (60 N en option) 196/800Vitesse de rotation : 1 à 500 t/min (1500 t/ Couple maximal : 450 mNm Force de frottement (capteur LVDT) : jusqu’à 10 N (20 N en option) Force normale maximale : 10 N (60 N en option)

Download the complete technical features

Usage scope

Materials
