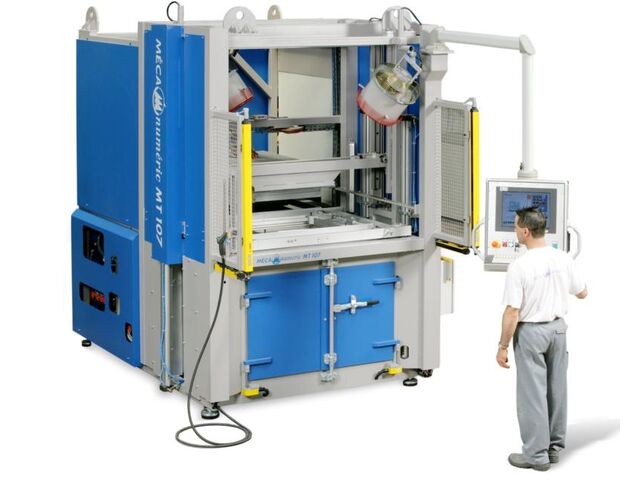

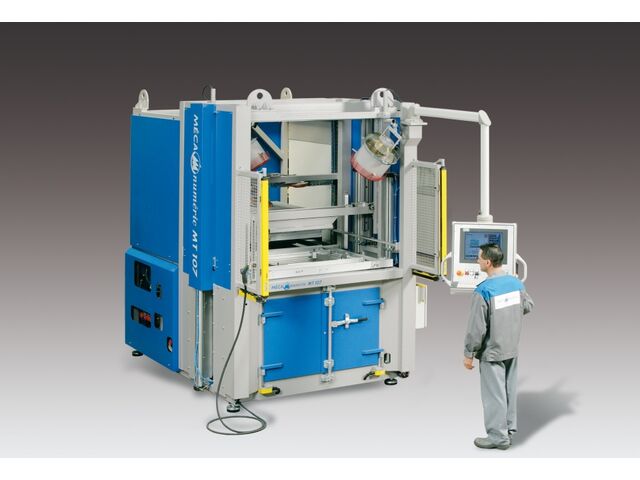

Vacuum forming equipment / Ovens | MECAFORM

Thermoforming machine under high pressure

Go to the supplier’s website Receive Documentation Ask for a quote

Semi automatic presses for high rate industrial vacuum forming,for making complex parts with very deep vacuum forming.


VACUUM FORMING EQUIPMENT BY VACUUM OF PLASTIC THERMOPLASTIC MATERIAL

TECHNOLOGY

  • Compact structure with welded steel frame
  • Double superior and inferior heating plate, with infrared radiating elements type FSR or HTS
  • Parallel blank holder for bigger and easier removal from the mould
  • Vacuum box with positive or negative function box
  • Integrated vacuum tank with lubricated vacuum vane pump
  • Option counterpunch for difficult moulding
  • Numerical driving by microprocessors with interface man/machine on industrial PC with colour screen 15 inches
  • Supervision of heating temperatures and cooling by infrared pyrometer
  • Individual adjustment of the power for each radiating element by microprocessor, with data graphical display

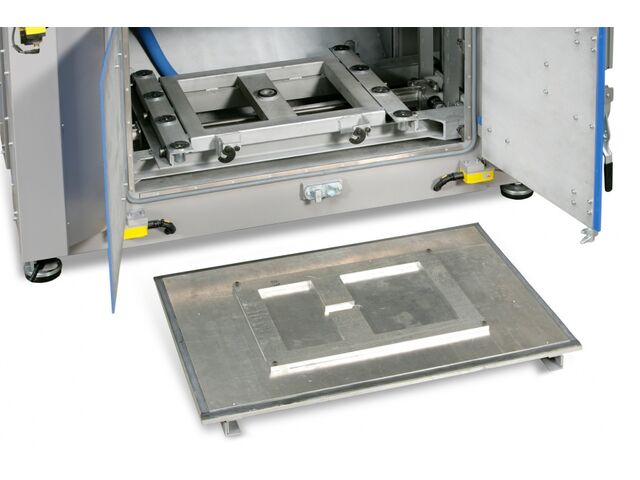

  • Removable mould holder with indexing system and rapid clamping

TECHNICAL DESCRIPTION

  • Structure : steel welded slotted gantry laid down without pit.
  • Mold Holder : steel welded mold holder with removable plate. Transmission through 4 pneumatic rams with a synchronization system between rack and pinion
  • Blank holder frame : steel welded frame. Transmission through 4 pneumatic rams with a synchronization
    system between rack and pinion.
  • Heating plates : steel welded frame with modular infrared heating elements in the 2 to 5 micron wavelength range. Power regulation of the heating elements by a 3-position switch for MT55, individual from 0 to 100% with 1-percent increments for MT107, 1512 and 2012 and by group of 2 elements for MT2515 and 3020).
  • Blowing box : steel welded vacuum proof box. Front doors with basquili. Lateral and back access by screwed vacuum proof trapdoors. Temperature box controlled by a thermostatic sensor.
  • Security : multiple light beam safety devices. Automatic back repositioning of the heating plates in case of power cut. Front doors protected by safety rotating sensors.


OPTIONS

  • Automated loading
  • Pre heating out of forming area
  • Automated unloading
  • Mould temperature regulation system
