Vacuum chamber | VC P572X125

Vacuum systems

Ask for a quote

Presentation

The Vacuum Chamber VC P572X125 is made of a unique, flexible chamber system based on extruded aluminium profiles. The three meter long profiles are cut to the desired length and equipped with a bolted rear wall and a door.

This system has great benefits:

? Flexible length of max. 3 meters
? Very fast delivery because only door and back wall must be supplemented
? Low-cost
? Low-weight
? Low desorption of the aluminium, therefore also suitable for high vacuum
? Colour of your choice possible by anodising
? Excellent thermal conduction
? Highly clean processes possible, e.g. in the semiconductor field
? Easy operation
? No welding required, parts can be easily attached
? Easy attachment to the existing division bars

Vacuum chamber specifications

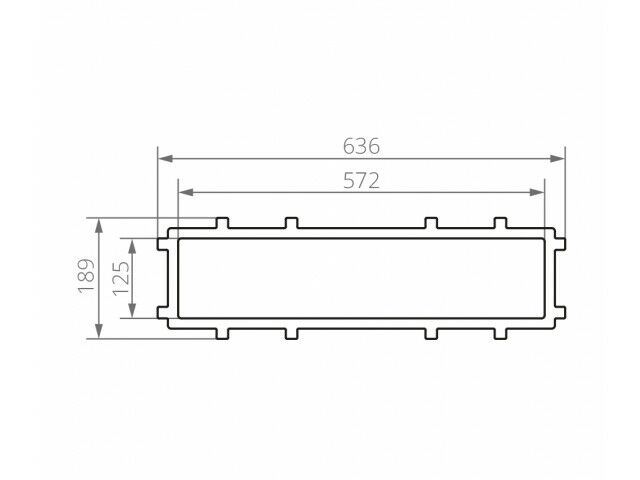

Internal dimensions

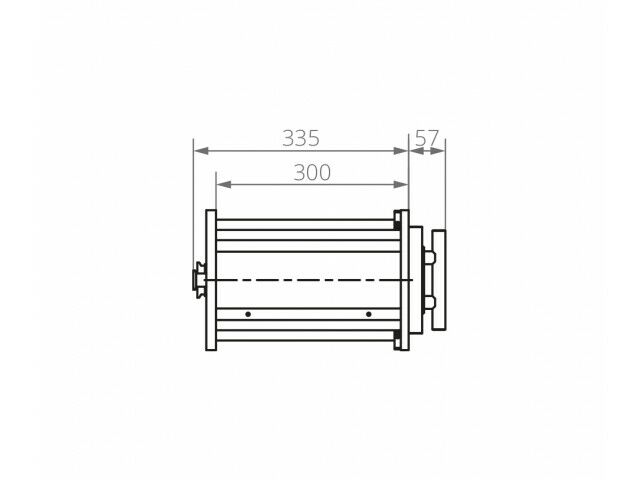

Length: up to 3000 mm (standard: 300 mm, 650 mm)
Width: 572 mm
Height: 125 mm

Volume
from approx. 21 to 46 liters

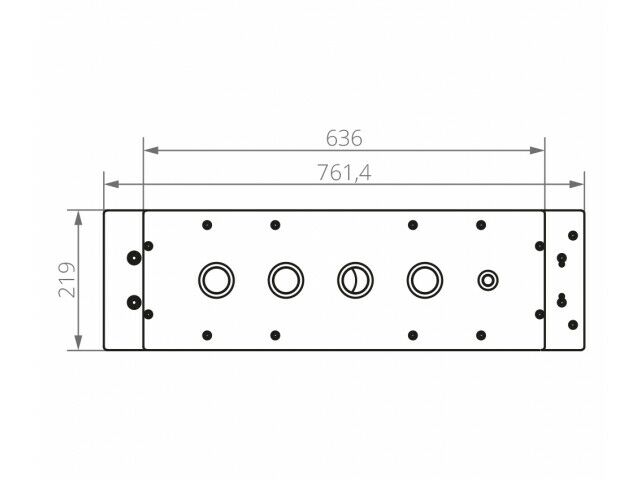

Connections
1 x KF 16
4 x KF 40
Additional flanges possible in any position

Door
Hinged door with sight glass
