Vacuum chamber | VC M1000²

Vacuum systems

Ask for a quote

Presentation

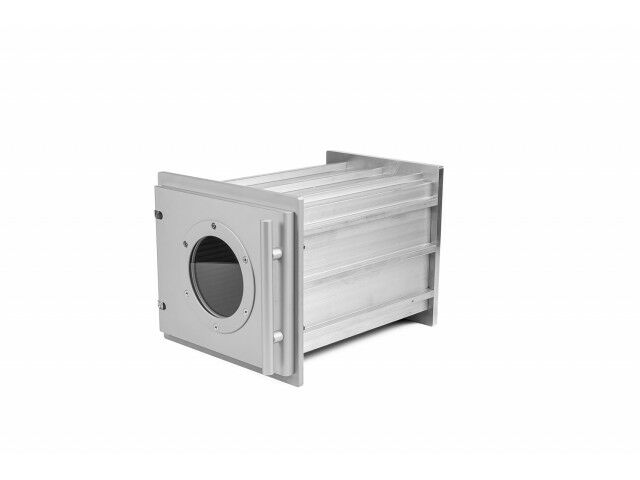

The VC M1000² is based on our new modular chamber system. The system consists of individual, fully milled aluminum modules with a depth of 500mm. Thus the length of the chamber can be variably set in 500mm steps.

This system has great benefits:

? Flexible length of max. 3 meters
? Very fast delivery because only door and back wall must be supplemented
? Low-cost
? Low-weight
? Low desorption of the aluminium, therefore also suitable for high vacuum
? Colour of your choice possible by anodising
? Highly clean processes possible, e.g. in the semiconductor field
? Easy operation
? No welding required, parts can be easily attached
? Easy attachment to the existing division bars

Vacuum chamber specifications

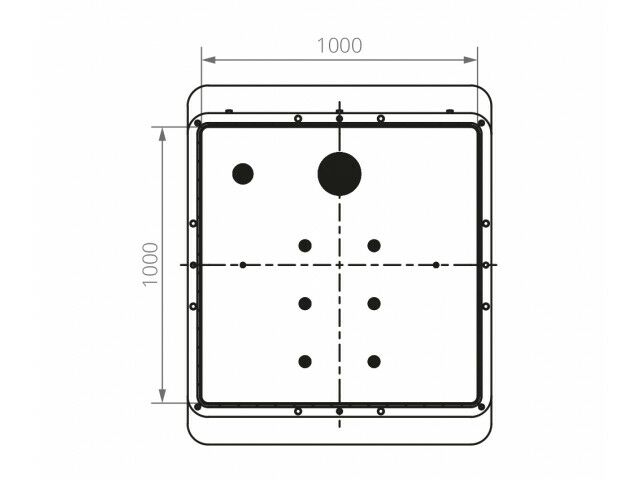

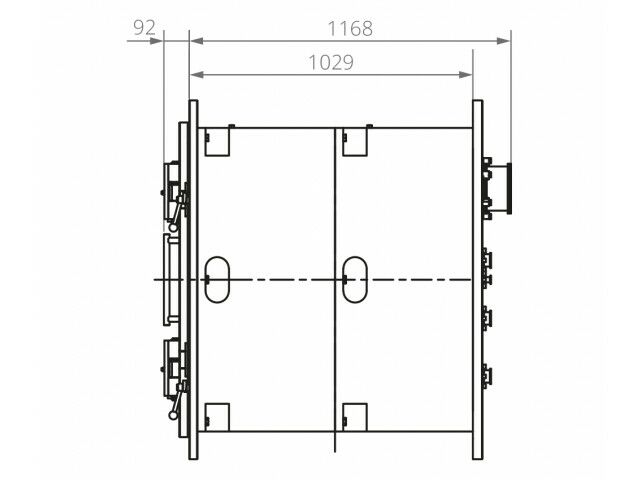

Internal dimensions
Length: 1000 mm (modular in 500 mm steps)
Width: 1000 mm
Height: 1000 mm

Volume
approx. 1000 liters

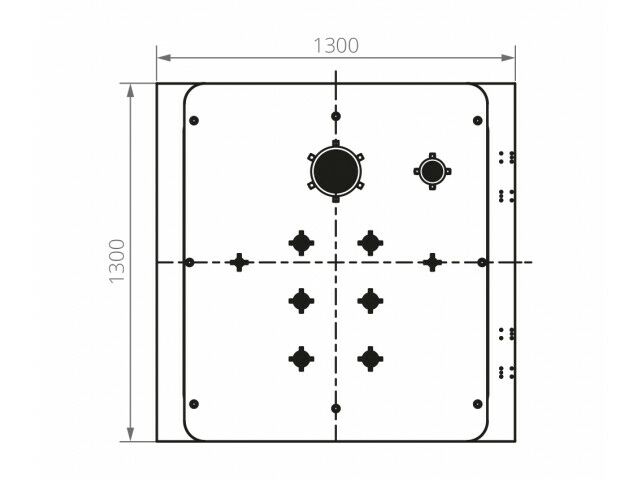

Connections
2 x KF 16
6 x KF 40
1 x ISO K 63
1 x ISO K 160

Additional flanges possible in any position

Door
Hinged door with sight glass
