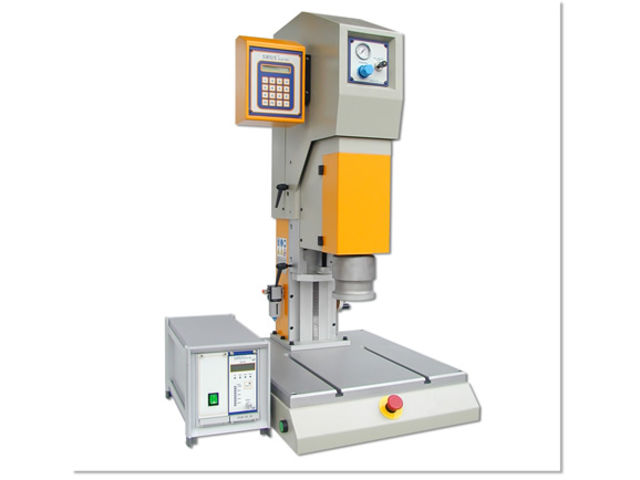

USP-M

The ultrasonic welders of the USP-M series have been designed and manufactured using state-of–the-art technologies (CAD, CNC). The mechanical and electrical solutions adopted grant optimum working conditions with extensive adjustment possibilities, as a result making this welder suitable for a wide range of welding applications. The proven reliability of ultrasonic generators assures a constant welding process. The USP-M welders are available in three models:

• with base
• bench-type
• column-type (possibility of insertion into automatic lines)

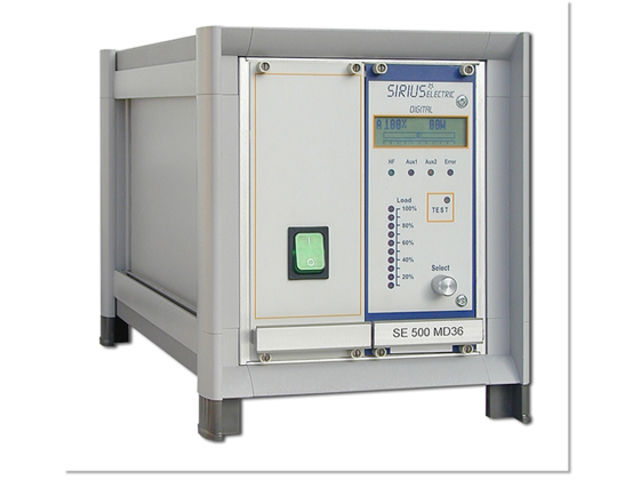

The movement of the transducer holder head is achieved with a pneumatic system on high-precision prismatic guides. The welder is provided with a mechanical lock to control the present welding position. A wide range of generators is available: systems with an operating frequency of 20 and 36 kHz, with power from 500 up to 3000 Watt. The generators are technically advanced and totally digital. They incorporate a back-lit display and come enclosed into an elegant metal case. One of the most important characteristics of this welder is the cycle control system, which is totally run by a MICROPROCESSOR.
