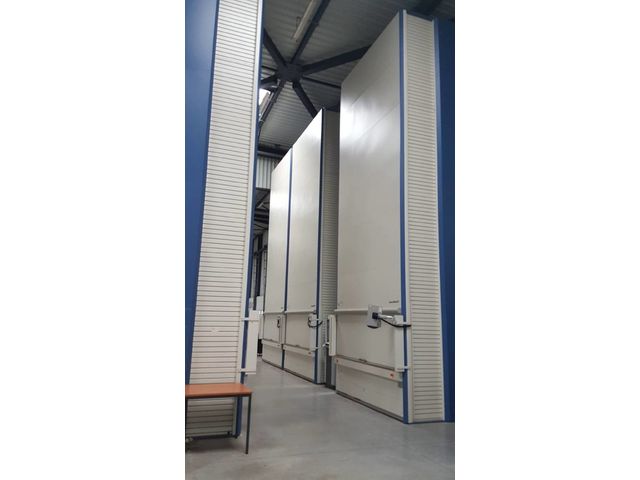

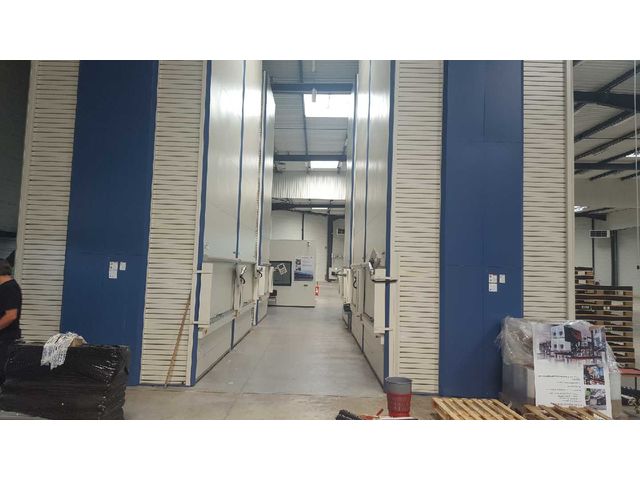

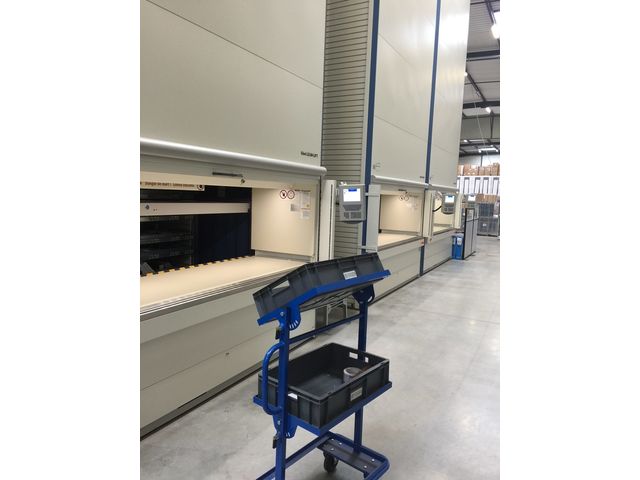

used automated storage Hanel Lean Lift Second hand (equivalent of Shuttle)

Lean-Lift 2860-825/281/320/75/190/20 High Speed

-176 storage possibilities : at the back (up part) :
- 94 units, down part : 3 trays  -in the front : 77 units

- Picking area for users : 90 cm hight

- 46 trays : 2 860 mm large x 825 mm deep, 57 mm high
- Charge until 190 kg per tray
- total charge until 20 000 kg

-Dimensions

• 8 028 mm high
• 3 205 mm large
• 2 810 mm deep

-Selection: -MP12N-H-TFT (Host-WEB) with colour touch screen

                    Right-hand console on universal arm,

                     on top of the sampling opening.

                    -With interface distributor, with Ethernet connection,

                      with Ethernet lift switch.

                    -Module 00/ remote control operation of the storage unit

                   -1 x 28 diode strip with depth,

                      at the bottom in front of the opening.

-Safety devices: safety light barrier in front of the extraction point

LL-LVH. Depth of 165 mm.

-Power supply: High Speed version:

-Unit: 400V Tri + T, without Neutral, 50Hz, 5,0 KW.

-Extractor: 400V Tri + T, without Neutral, 50Hz, 0,37 KW.

-16 Amp. For connection to a TN network without Neutral.

-Power cable 4 G 2.5mm². If differential protection,

minimum 300mA type A, "SI" (super immunised) per machine.

-Connection of customer power supply cable to machine terminal block (stocker) by the customer.

With lighting inside the opening, energy-saving,

LED technology with Plexiglas cover.

By-Pass device "ESB" i.e. :

-The safety device does not react when the storage unit is switched off,

but only when the motor is running.

-Partly redundant control.

-Second safety circuit when the extraction point is closed.

-Maintenance access: Left and right.

Maintenance access: Left on one stocker and right on the other stocker.

-Colour: Sides: NCS 5030 blue

                Lighting strip and base: NCS 3502 grey

                 Front and interior: NCS 1303 Pearl Grey

-Empty weight: 6,061 kg.
