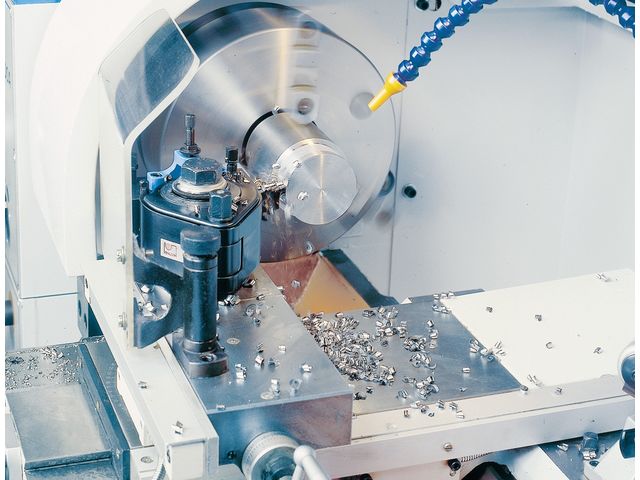

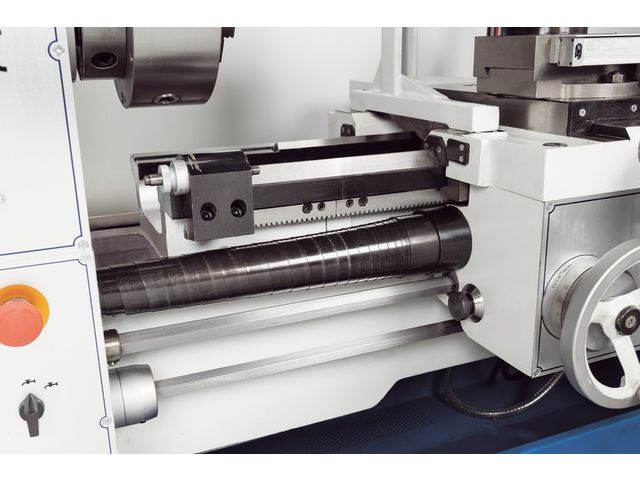

Universal Lathe - DM 1000 A.2

Vertical towers

Ask for a quote Receive Documentation Contact the supplier

• Heavy-duty bed with large dimensions, hardened and precision-ground, removable bridge.
• Large main spindle in a solid bearing with Camlock D1/6.
• All gears and shafts are hardened and ground and run in an oil-bath.
• Foot brakes for instant stop of main spindle.
• Manual central lubrication.
• Large 52 mm spindle capacity.
• Powerful motor, 5.5 kW.
• Complete accessory set.
• Adjustable slip clutch eliminates tooth breakage caused by overload conditions.
• Foot brakes for instant headstock stopping and shut off.
• Chuck protector.
• Hardened and ground gears and shafts.
• Heavy-duty, large-sized bed, hardened and precision-ground.
• Slide guideway adjustable through taper gibs.
• Gap bridge.
• Left part of main spindle supported on tapered roller bearings and thrust bearings.
• Right part of main spindle supported on double-row cylindrical roller bearings.
• Headstock runs in oil-bath.
• Mount: Camlock D1-6.
• Feed drive gears and apron run in oil-bath.

3-axis position indicator

• More accuracy.
• Lower error rate.
• Increased productivity.
• Resulting in valuable time savings.
• For increased productivity.
• Easy to read display.
• Operator-specific features.
• Convenient keyboard layout.
• Resolution: 0.01/ 0.005 mm.
• Default coordinates.
• Axis position is maintained when display is turned off.
• Hole circle pattern calculation.
• Calculator function.
• Storage for 10 tools.
• Radius / diameter toggle.
• mm/inch conversion.
• Easy expansion and maintenance-free operation.
• Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes.

Standard equipment : 4-jaw face plate chuck Ø 250 mm, clamping plate 380 mm, 3-axis position indicator, 3-jaw chuck Ø 250 mm, change gears, quick change tool holder, quick change tool holder head, leadscrew cover, coolant system, steady and follow rest, includes fixed splash guard (wall), chuck guard, foot brake pedal, work lamp, reducing sleeve, 2 dead centers, operating tools, operator manual
