Unit Heaters Ultra

Ultra – For greater energy efficiency and comfort in large spaces

Kampmann Ultra EC units are high-performance, energysaving and ErP-compliant.

The Ultra EC is now equipped with the most energy-efficient drive concept, through the use of EC technology, and can now be used wherever energy needs to be saved over the long term.

Ultra are used as ceiling units, either in heating and/or cooling configuration, for recirculating air or primary air operation in:
-retail chains
-showrooms and shop floors
-entrance halls
-retail stores with add-on accessories for installation in raised ceilings and acoustic grid ceilings 625 x 625 mm (600 x 600 mm on request)
-spaces with a ceiling height of between 2.3 m and 4.0 m.

The Ultra product range includes 4 models for heating and 3 models for heating/cooling. The height of every model is only 330 mm. Different heat exchangers and fans are fitted depending on the model (73, 84, 85, 96), the configuration (heating or heating/cooling) and control options.

How it works

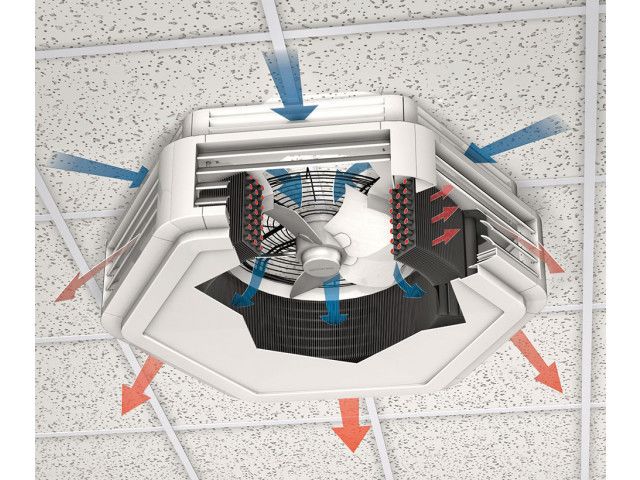

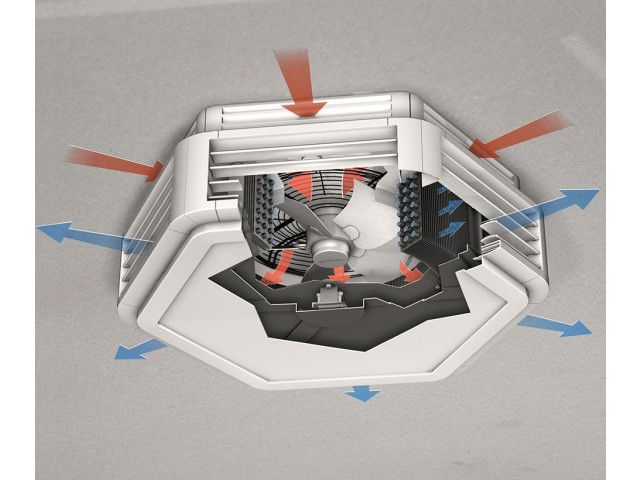

Air is drawn in through the axial fan and is blown through the circular heat exchanger into the room. The heated or cooled air is guided into the room on-demand through the pre(settable) louvre slats. Models with large heat exchanger capacity are ideal for use with low water temperatures.

Scope of delivery

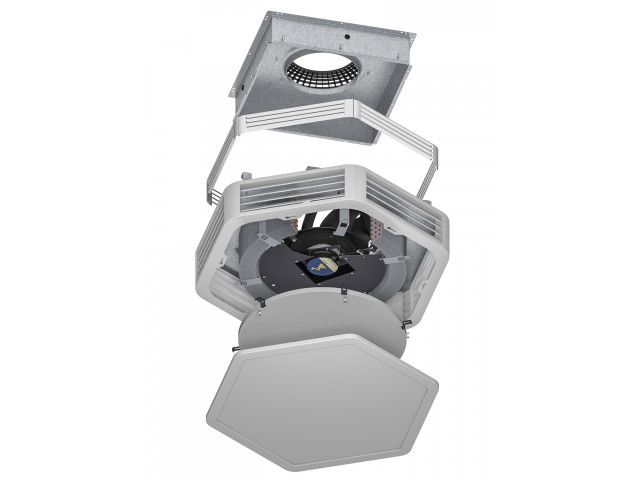

-intake crown for air intake supplied as standard for ease of fitting on site; brackets are fitted
-6-sided air outlet, slats can be pre-set at six defined angles

Benefits
-high-performance, energy-saving
-contemporary housing design
-extremely shallow design
-long-term low operating costs through the use of EC technology
-suitable for low water temperatures
-extensive range of accessories
-ideal for use in the Kampmann Hybrid-ECO system
-all housing parts are plastic, therefore more lightweight, traffic white RAL 9016 (can be painted)
-hygiene-certified to VDI 6022

Standard range
-plastic housing in RAL 9016
-air guidance slats can be slotted into six positions
-circular heat
-extensive range of control accessories
-supplied as standard with intake crown

Applications
Buildings of all kinds, which need to be ideally heated and ventilated with centralised or decentralised control.

Kampmann is completely modernising its unit heaters.

As the market leader in this segment, we are responsibly taking a courageous step forwards and, from now on, will be relying systematically on EC technology to power and control our units.

There are good reasons for this:
- No wasted power
- Continuously variable control
- Minimum noise levels
- ErP-compliant future
