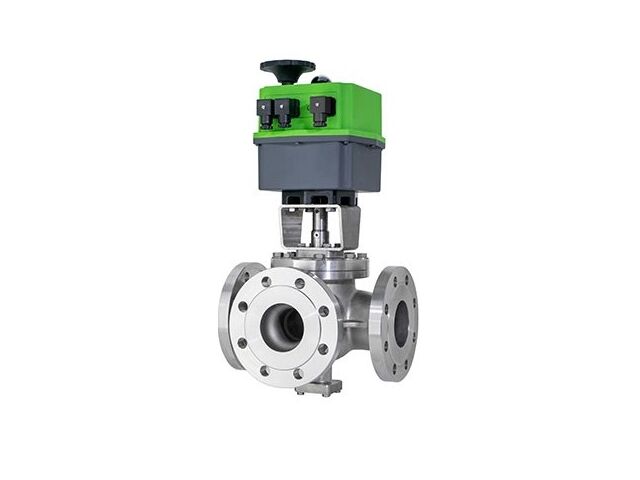

Type 4083 – Three-way ball sector valve with electric actuator

This colored sign emphasizes the general obligations In compliance with MFX 08003 ISO 6790/7010 Silk-screen printing Indoor and outdoor use Custom-made on request

“ https://controlsystems.schubert-salzer.com/en/ball-sector-valves/type/4083/ ”

Ask for a quote

Presentation

The three-way ball sector valve type 4083 with electric actuator in diverting or mixing function is ideal for a wide range of process control applications. Due to its design, the three-way ball sector valve enables high-precision control (rangeability of 100:1) over a wide range and features exceptionally high Kvs values in all flow directions.

Size:
DN 50 - DN 150
Pressure:
DN50: PN40

DN65 - DN150: PN25
Material:
Stainless steel 1.4408 / 1.4404
Temperature:
Media temperatur: -40 °C up to 220 °C

depending on the sealings

Connection

Flanges according to DIN EN 1092-1

Accessories

Limit switch

Position feedback

Fail safe feature

. . .

Actuator

Control actuators or 3-point actuators

Thrust 230 VAC, 115 VAC, 24 VAC,

400 V, 24 VDC

Actuator variants

Electrical rotating actuator (on/off, control)

Application

Fluids, suspensions as well as gases

Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T2 X Gb

II 2D Ex h IIIC 85°C…220°C X Db

Approvals and certificates

EC Declaration of Conformity

UKCA Declaration of Conformity

For details, see the documentation or upon request.
