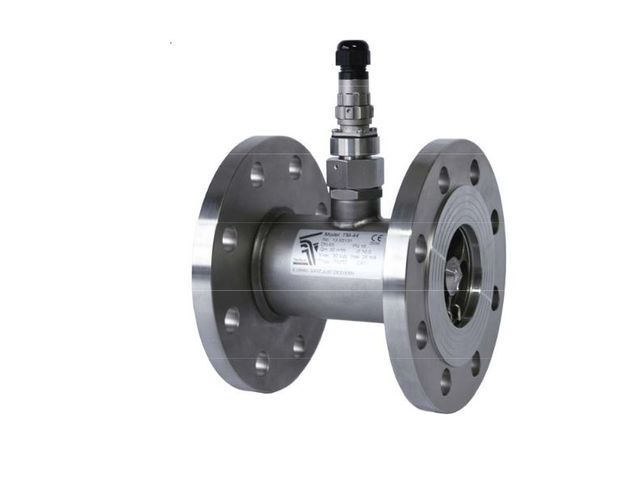

Turbine Series TM44

Turbine fitted flow meter

Ask for a quote

Presentation

Turbine flowmeter suitable for flow measurement of liquids or volume totalizer, with several options for the electronic converters. Suitable for all flow directions with good performance with clean and low viscosity liquids. Application areas: All kind of industrial processes in chemical and petrochemical industry, liquefied gas systems, high pressure systems... Technical specifications:

Measuring range:

300 l/h … 1100 m3/h H2O

Accuracy:

+-0,5%

Connections:

DN15…DN50 PN40
DN10…DN150 PN16
Standard flange connection according to DIN2502 flanges. Others on request
BSP o NPT threaded connections
DIN11851 sanitary connection

Materials:

Body: EN 1.4404 (SS 316L)
Propeller: EN 1.4416 (SS 430)

mV output by means of pick-up coil proportional to the flow

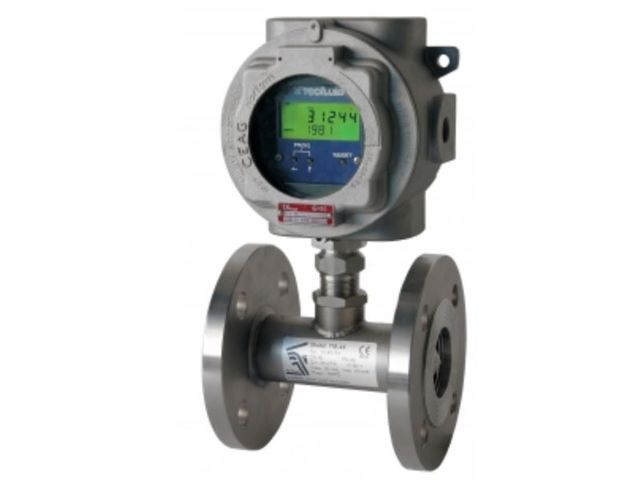

Compatible with associated electronic converters CIP / CIP II / MC-01 / MT-02 / DFD / APTM-44 / CI-420 / CP420R and CH420R / CP420L and CH420L

Considered as “Simple Apparatus” according to ATEX

Options:

Design for high pressure on request
Special design for converters from different manufacturers
