Triple Output DC Power Supply, 30V, 3A, 195W, Programmable, B&K Precision : BK9130B

Triple Output DC Power Supply, 30V, 3A, 195W, Programmable, B&K Precision : BK9130B - SEFRAM INSTRUMENTS ET SYSTEMES

Triple Output DC Power Supply, 30V, 3A, 195W, Programmable, B&K Precision : BK9130B - Power supplies

Triple Output DC Power Supply, 30V, 3A, 195W, Programmable, B&K Precision : BK9130B

Power supplies

Habia Cable is a leading international manufacturer of specialist wire and cable. Our RTFRO diesel engine cables have been used for over 20 years by a number of leading diesel manufacturers. Developed...

Ask for a quote

Presentation

The BK9130B Series triple output linear programmable DC power supplies feature isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, these supplies can operate in tracking mode with user-configurable ratios between channels. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values.

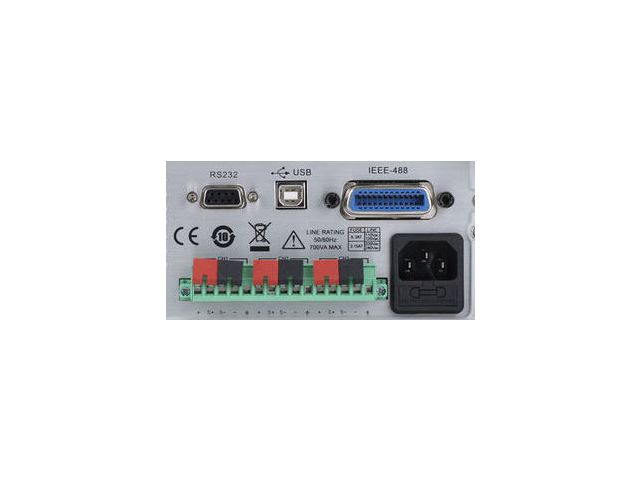

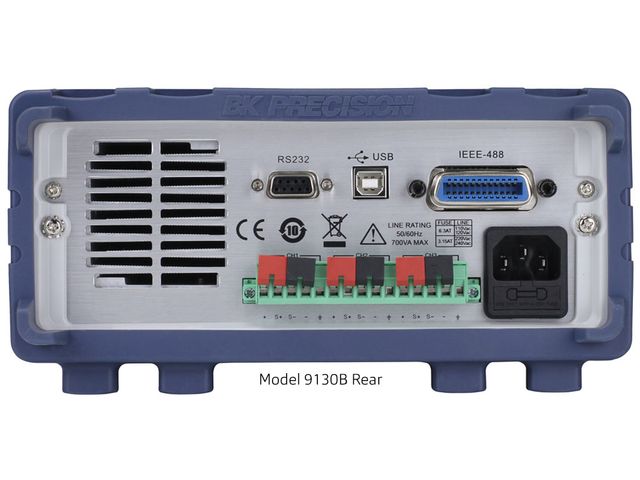

For remote control, the standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands can be used to remotely control the power supplies via a PC.

Three independent and electrically isolated outputs
Displays voltage and current settings for all three channels simultaneously
Low noise, linear regulation
High programming and readback resolution of 1 mV/1 mA
Series and parallel modes combine channels to increase the output voltage or current
Tracking mode allows users to set up channels to maintain a programmed ratio
Fully programmable channels with Output On/Off control
Store and recall up to 36 instrument settings
Remote sense
Timer-controlled output function adjustable from 0.1 - 99999.9 s
Standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands for remote control
NI certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
