Trench convector Katherm QK nano

Trench heating unit with EC tangential fan convection. Top performance from smallest dimensions.

The Katherm QK nano provides high heat outputs from minimal dimensions. With a trench height of only 70 mm and a trench width of only 165 mm, it can be used wherever conventional trench solutions are impossible due to a lack of space. Due to the limited space in the unit, the interplay of the EC tangential fan and high-output copper-aluminium convector has been optimised in the Katherm QK nano.

Benefits
- extremely low overall height
- maximal use of the floor space
- usual quietness and high-performance

Standard range
Katherm QK nano: 1 trench width each with 5 trench lengths, 1 trench height, 3 control options.
Notwithstanding the standard range (NP), the products can also be individually manufactured in line with the non-standard program (MP).

Applications
All areas of buildings in which effective heating and cold air screening is required. Effective, energy-saving heating can be provided by Katherm QK in conjunction with modern heating systems.

Katherm QK - compact, powerful, quiet

Heaters positioned in front of windows are often unacceptable for aesthetic reasons in modern offices and other buildings with large glazed windows. At the same time, the demands of the users in terms of the aesthetics of the space are also becoming more exacting.

Katherm QK, QK nano excel in particular with low water temperatures when combined with modern heating systems thanks to their compact design, energy-saving and whisper-quiet fans with EC motors and by high-performance convectors. Narrow trench widths of only 165, 190 and 215 mm enable (almost) unrestricted use of the floor space. Fitted with the most modern EC technology, the heat outputs from every width of Katherm QK, QK nano are impressive. Measurements and CFD simulations undertaken in the Kampmann Research & Development Centre helped to develop a sound-optimised floor trench, which helps to create a pleasant interior climate.

Function

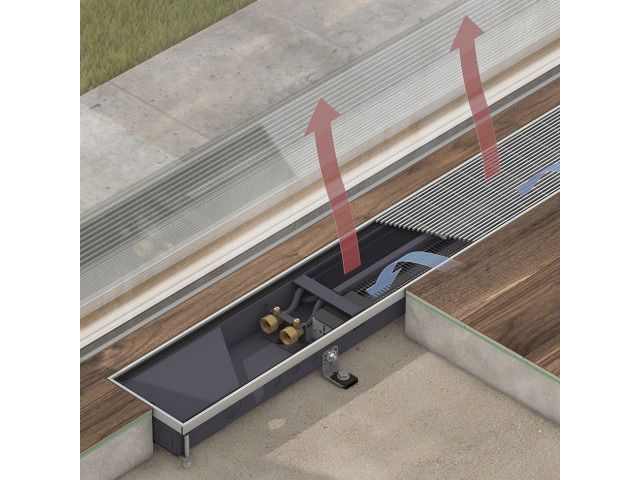

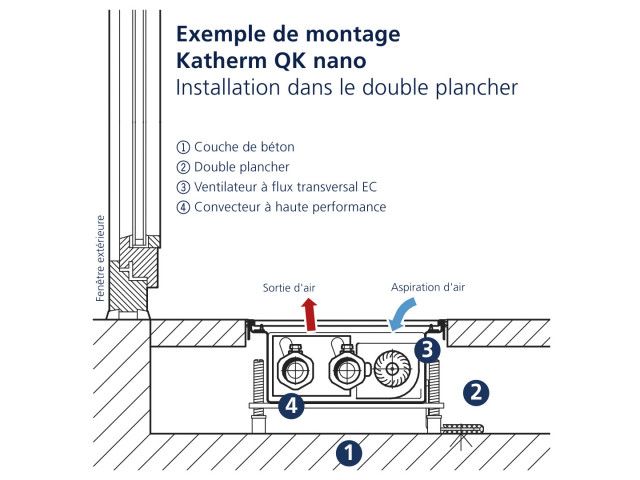

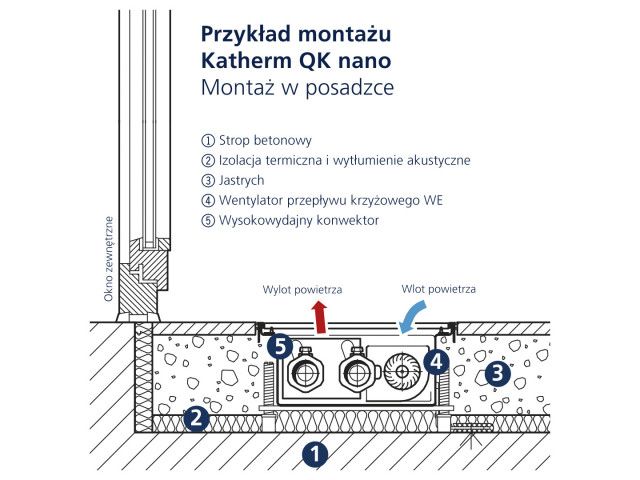

Air is drawn in by the fan and routed through the parallel convector. The convector arranged on the window side provides for optimum screening of cold air in front of the window. The stream of warm air thus flows draught-free into the room. EC technology EC motors can be operated within a significantly wider speed range due to their intelligent integrated power electronics. Low speeds generate only very low noise, partially far below the audible threshold or the usual measuring range. They means that people can spend time peacefully in living rooms, offices and hotel bedrooms. The intelligent motor management permanently detects the operating state and keeps the pre-set speed constant, regardless of the fan length and external influences.

Fans
The cross-flow fans are matched to the application, optimised in terms of air flow and are adapted to the length of the convectors.

Control
There are three different control schemes available for the Katherm QK and Katherm QK nano for ease of integration into individual control schemes. The spacesaving 24 V versions permits direct connection to on-site building management systems. An electromechanical control option using a room thermostat or alternatively the KaControl system are both available for continuously variable control with 230 V supply voltage. KaControl represents the system solution for maximum energy efficiency, limitless integration options into building automation systems and the highes degree of user-friendly operating philosophy.
