TR MONO Drum pumps

Ask for a quote

Presentation

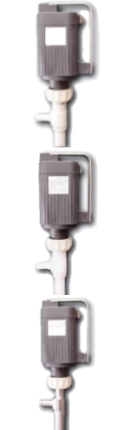

Vertical centrifugal pumps constructed from PP, PVDF, AISI. 316 steel and with internal parts in polypropylene, PVDF, Ryton. Practical and handy, they allow discontinuous service and they are ideal for transfering non-abrasive and non-viscous chemical products contained in drums and barrels.

Compatibly with the chemical resistance of the construction materials, TR pumps are in fact appropriate for use with liquids free of abrasive suspended solids, at ambient temperature with a specific gravity up to 1.8 and viscosity up to 14 cps.

They are instead not appropriate for flammable liquids and/or for use in areas with potentially explosive atmospheres.

Characteristics

Length: up to 1200 mm

Dip tube: Ø 42 mm (PP), Ø 40 mm (PVDF) and Ø 42.5 (AISI 316).

Maximum temperature: PP: 50°C -PVDF/AISI 316: 85°C

Maximum flow rate: 80 l/min

Motor: Single-phase electric 500 W - 220 V.

Materials: PTFE bushings, HASTELLOY C shaft (PP/PVDF) or AISI 316 steel shaft, internal parts made of PP/PTFE, PVDF/PTFE or PTFE RYTON.
