Presentation

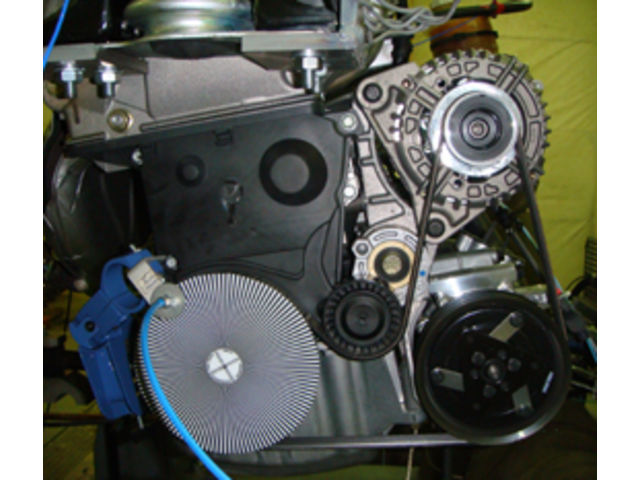

The Instantaneous angular Velocity Converter (IVC) provides instantaneous angular velocity signal to be analyzed.

• Integrated Frequency to Voltage converter
• Cross Phase Tracking: the order cross-phase relatively to a reference channel for torsional resonances at specific orders identification
• Virtual inputs compute the static and dynamic twist from 2 tachometers’ signals

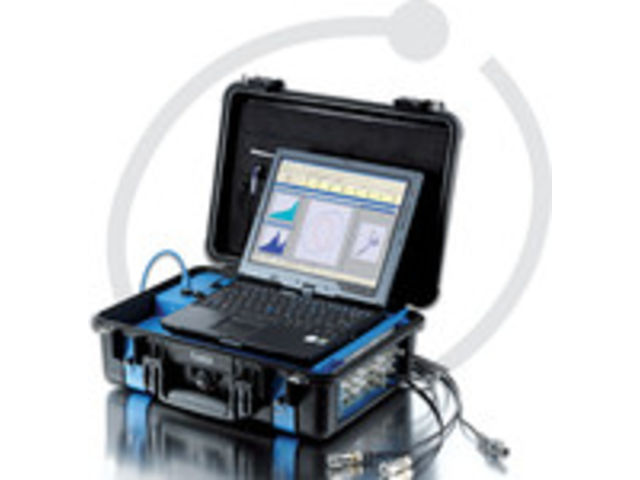

The 3-Series analyzers integrate the frequency to voltage converters based on the existing external synch. inputs, used for the measurement of torsional vibration. The Instantaneous angular Velocity Converter software option converts it in an instantaneous angular velocity signal available for the analysis plug-ins. With NVGate, the software platform for OROS 3-Series analyzers, the analyses can be real-time and/or post-processed.

The instantaneous angular velocity can be converted to angular position or to angular acceleration using the digital integration and differentiation filters. The obtained angular signal is processed as any other input (or recorded track) of the analyzer. The typical analysis modes are FFT, the order tracking, time domain analysis and waterfall/color spectrogram.

Some special features are available for the analysis of this angular signal:

• The shaft view shows the instantaneous angular signal along one or multiple revolution.
• The cross-phase tracking extracts the cross-phase order by order between one reference channel and all the others. It is useful for the identification of torsional resonances at specific orders and the evaluation of their amplitudes.
