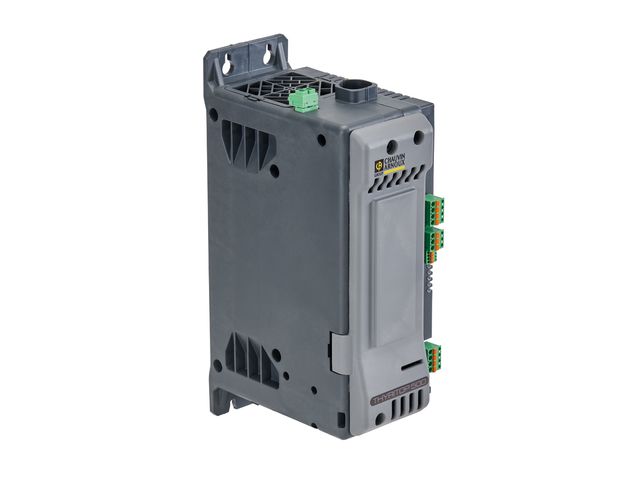

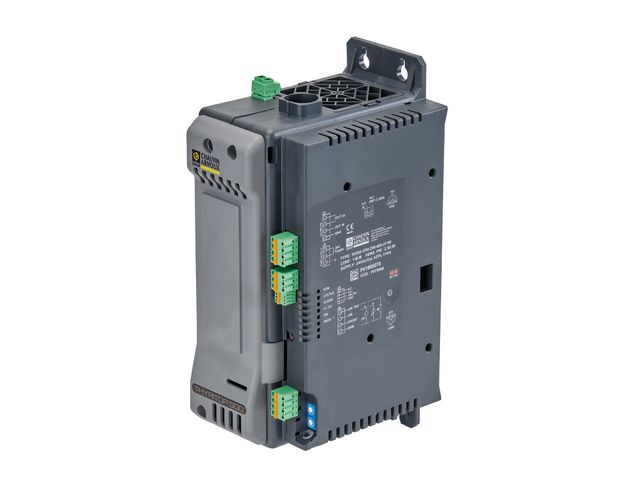

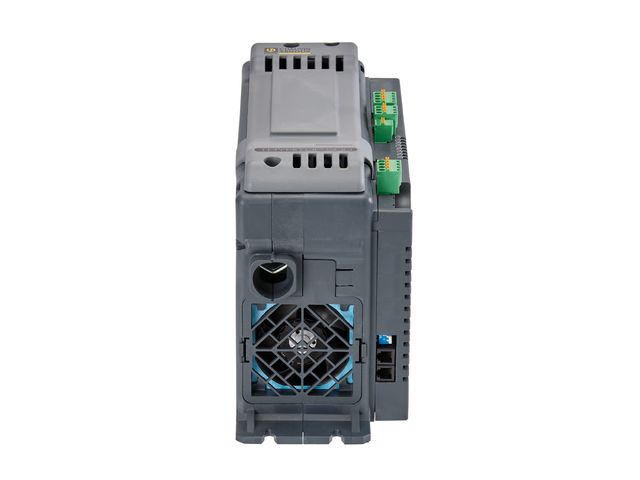

THYRITOP 500, CA PYROCONTROLE power controllers

Regulators

“ - Compact - 480 V, 600 V and 690 V voltage ranges - Single and three-phase*, - 2 or 3-phase control - Modbus RTU communication - Master/slave operation ”

Ask for a quote

Presentation

The THYRITOP 500 models can be used to manage the electrical power of most industrial heating elements:

Low thermal coefficient
- Nickel-chrome resistor
- Medium and long-wave infrared lamps
High thermal coefficient
- Kanthal™ and Super Kanthal™ (MiSo2) heating resistors
- SHort-wave infrared lamps
Inductive loads
- Transformers
- Inductors

2 models are available

25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A single-phase power controllers
150 A – 200 A – 250 A single-phase power controllers

Main specifications

Control: I - I² - V - V² - P
Current ranges: 25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A – 150 A – 200 A – 250 A
Rated voltage ranges: 480 Vac – 600 Vac – 690 Vac
Configurable control input: 0-10 V – 0/4-20 mA
Activation: BURST firing – Half single-cycle mode with zero voltage switching – Phase angle
Master/slave operating mode for controlling three-phase resistive loads

Technical features

Use from 480 VAC to 690 VAC and from 25 A to 250 A Resistive, inductive and infrared loads Control I - I² - V - V² - P Modbus RTU communication (RS485 option) Configurable control input: 0-10 V – 0/4-20 mA

Download the complete technical features

Usage scope

ALL INDUSTRY Industrial furnaces for heat treatment and metallurgy Melting, sintering and nitriding furnaces Heating systems with infrared lamps (long, medium and short wave) Industrial dryers
