Thrust Pads DIN 6311 and low model - EH 22560

Stud

Ask for a quote

Presentation

Combinable with grub screws DIN 6332 with thrust point EH 22540.

Material

Steel, case-hardened, blackened. Snap ring inlayed.

Assembly

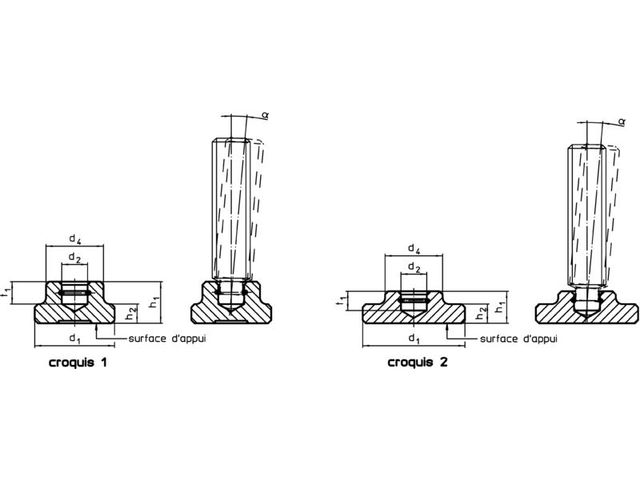

The thrust pad is to be held the way the spring retainer lies in the recess with its open side at the bottom. The grub screw is inclined as far as possible in the direction of the open side of the ring and pressed in.

Technical features

Download the complete technical features
