Throttle and shut-off valves type AV, AVT and CAV

Throttle and shut-off valves type AV, AVT and CAV - HAWE OTELEC

Throttle and shut-off valves type AV, AVT and CAV - Regulation valves

Throttle and shut-off valves type AV, AVT and CAV - produit présenté par HAWE OTELEC

Throttle and shut-off valves type AV, AVT and CAV

Regulation valves

Ask for a quote

Presentation

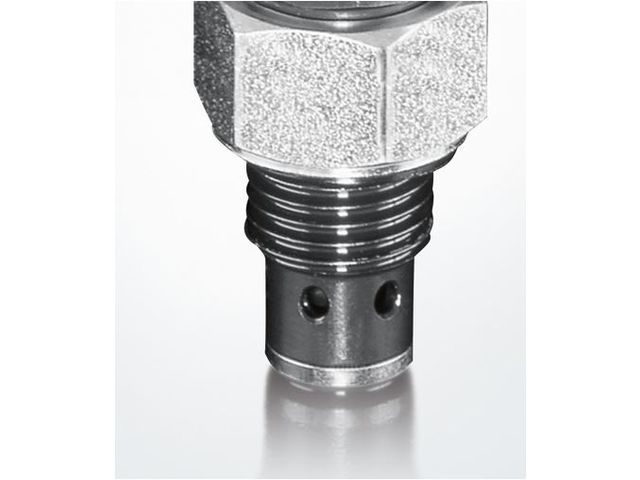

The throttle and shut-off valves types AVT, AV, and CAV, which can be completely blocked, are available in various sizes and belong to the flow valve group. Versions AV...E and CAV are screw-in valves. They generate a pressure drop between inlet and outlet to control the speed of cylinders in accumulator circuits, the flow in control circuits, or can function as a save guard for a pressure gauge. The throttles type AV... Restrict the flow via an annular gap i.e. a coneenters a valve seat hole (needle valve).

Throttles type CAV create backpressure by means of a slot with a constant width where the area of opening varies proportionally with the distance of the adjustment travel. Valves using this throttling principle are much less sensitive to contamination. Additional versions are available with an integrated check valve to enable free flow in the opposite direction.
