Presentation

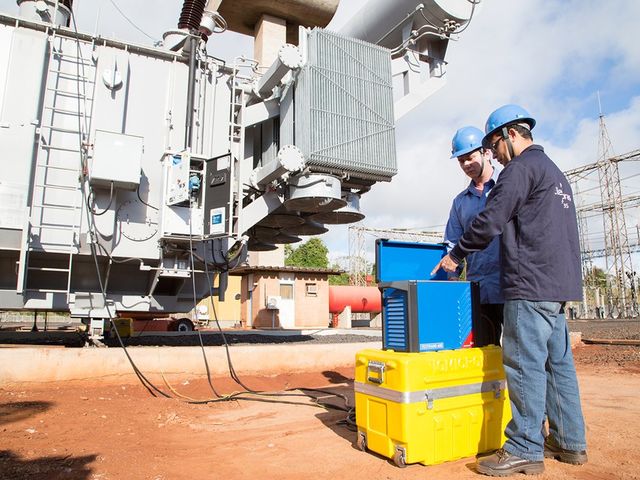

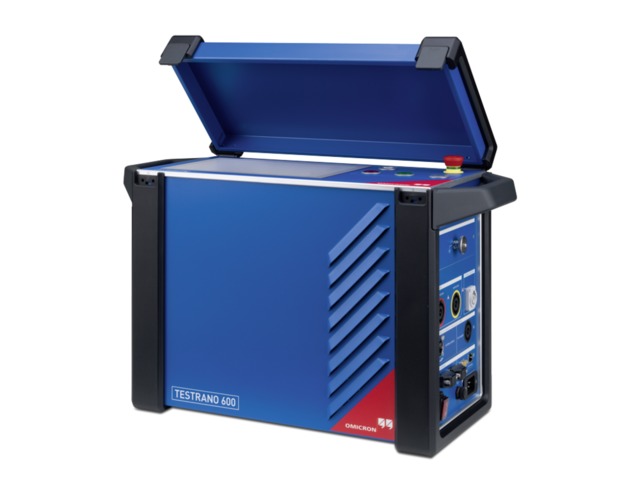

TESTRANO 600 is the world’s first portable (20 kg / 44 lbs), three-phase power transformer test system, which supports most common electrical tests on power transformers for routine and diagnostic testing onsite or during factory acceptance tests (FAT).

By using TESTRANO 600 you can perform various tests on power transformers without re-connecting. The three integrated sources speed up testing as tests can be done on all three phases simultaneously.

Thus, TESTRANO 600 cuts down testing time to one third compared to testing times with conventional single-phase test sets. It is a powerful device with 3 x 33 A DC or 400 V AC.

You can operate TESTRANO 600 via the smart TESTRANO TouchControl on the integrated 10.6”, multi-touch display or by using the Primary Test ManagerTM software on your laptop.

With TESTRANO 600 you can perform the following electrical standard tests :

Transformer turns ratio
Exciting current
DC winding resistance
Dynamic resistance (DRM)
Short-circuit impedance / leakage reactance
Frequency response of stray losses (FRSL)
Power/dissipation factor and capacitance (with CP TD1 accessory)
Demagnetization

Technical features

Voltage : Nominal: 100 V ... 240 V AC , Permitted: 85 V ... 264 V AC Frequency : Nominal: 50 Hz / 60 Hz , Permitted: 45 Hz ... 65 Hz Power fuse : Automatic circuit breaker with magnetic overcurrent tripping at I > 16 A Power consumption : Continuous : < 3.5 kW Peak: < 5.0 kW Temperature : Operating: -10 °C ... +55 °C / +14 °F ... +131 °F , Storage: -30 °C ... +70 °C / -22 °F ... +158 °F Relative humidity : 5 % ... 95 %, non-condensing Maximum altitude : Operating: 2 000 m / 6 550 ft, up to 5 000 m / 16 400 ft (with limited specifications 5,6) Dimensions (W × H × D) : 580 × 386 × 229 mm / 22.9 × 15.2 × 9.0 inch (W = 464 mm / 18.3 inch without handles) Weight : Device with display: 20.6 kg / 45.5 lbs , Device without display: 19.5 kg / 43 lbs Shock : IEC / EN 60068-2-27, 15 g / 11 ms, half-sinusoid, each axis

Download the complete technical features
