Test system for reliable quality and process control : EDDYCHEK 610

Test system for reliable quality and process control : EDDYCHEK 610 - PRUFTECHNIK

Test system for reliable quality and process control : EDDYCHEK 610 - Sensors and Control devices

Test system for reliable quality and process control : EDDYCHEK 610

Sensors and Control devices

Full stroke hydraulic front & rear vises enable clamping and unclamping from the control station with touch of a button. Both front and rear vises are shuttle vises, allowing for easy loading,...

Ask for a quote

Presentation

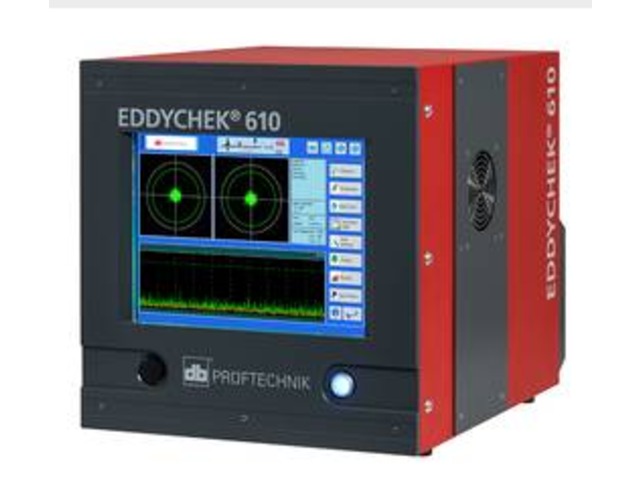

Up to ten completely independent test channels and the patented, fully digital signal processing of the new EDDYCHEK 610 ensure the flexibility required for mastering future test requirements.

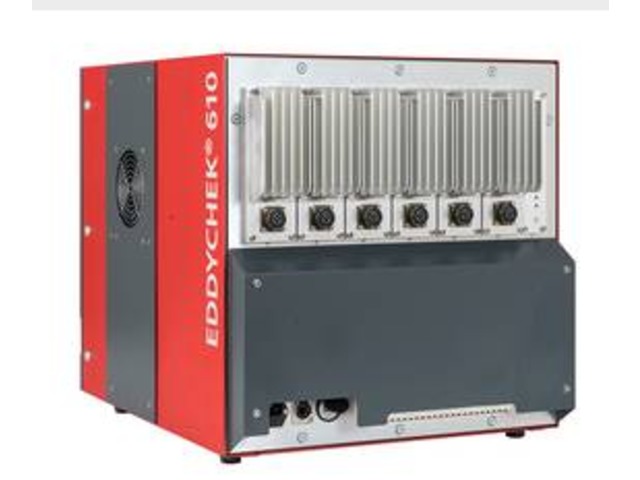

Thanks to the modular architecture with up to 6 freely configurable eddy current modules and a generous number of freely configurable inputs and outputs, later extensions and any adjustments to increasing customer requirements can be realized easily.

The new EDDYCHEK 610 and its future-oriented technology for eddy current based semi-finished product testing guarantee a sustainable security of investment.

EDDYCHEK 610 meets diverse test requirements. Classic crack testing with encircling coil in combination with fast rotating system and automatic distance compensation, as well as complicated material mix tests or the welding seam check. Marking and sorting equipment control as well as integration into a system control are included in the standard equipment version. All control information is available regardless of production speed and requested signal resolution.

The intuitive user interface provides easy control of the numerous options. Modern interfaces allow operation and access to all test information in the network.
