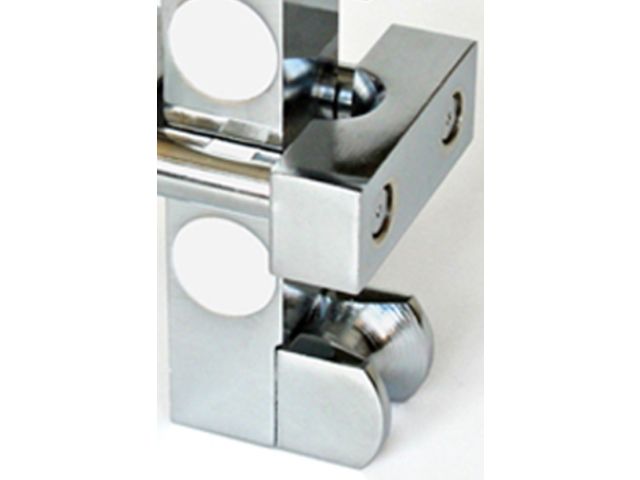

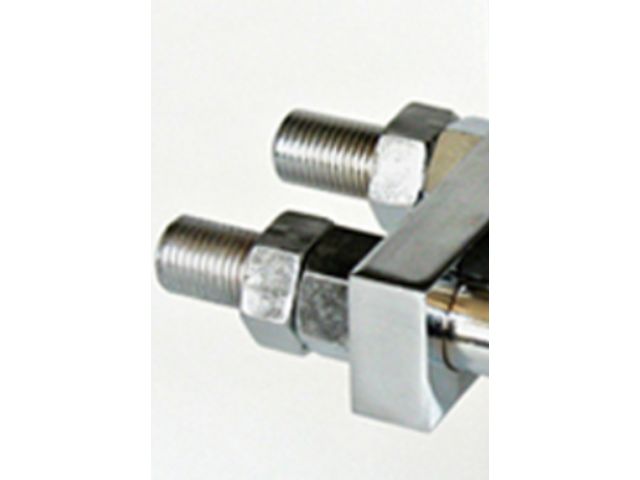

Tension load cell CT2 for measuring the tension of wire rope

Traction force sensor

Ask for a quote

Presentation

Tension load cell for measuring the tension of wire rope
Measuring ranges from 2 to 40 tonnes
Special steel construction
Rated output : 3 mV/V to +/- 0,1 %
Switching accuracy : < +/- 0,2 % on Full Scale
Safe Overload : 150 % M.R.
Compensated temperature range : - 10 °C to + 50 °C
Protecting rating : IP67
Length cable : 6 m.
