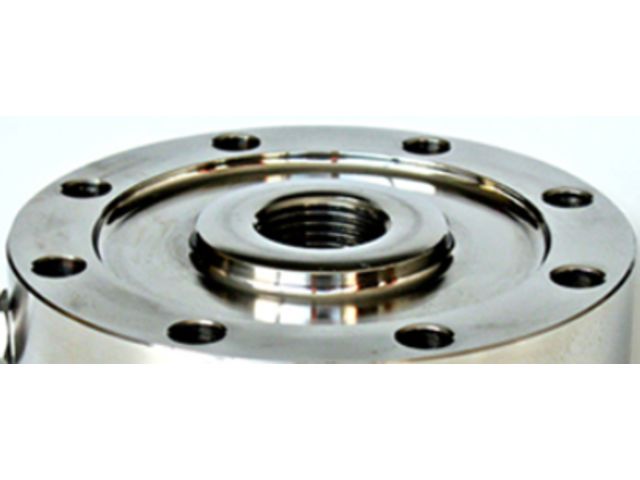

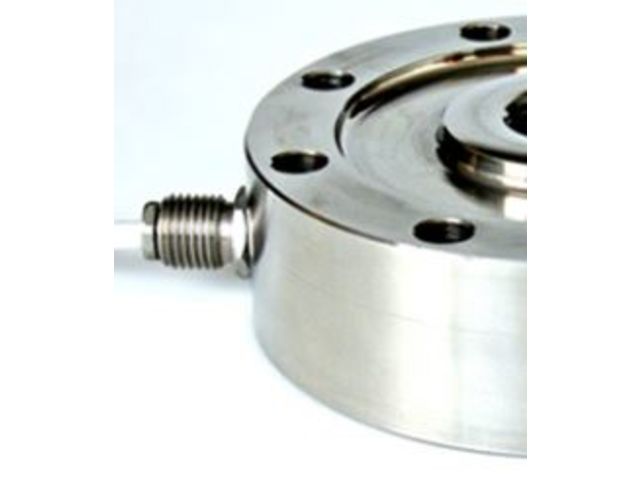

Tension Compression load cell - CTC1

Traction and compression force sensor

Ask for a quote

Presentation

Tension compression load cell
Measuring ranges from 500 kg to 200 tonnes
17-4 PH stainless steel construction
Rated output : 2 mV/V to +/- 0,3 %
Combined error : < +/- 0,05 %
Safe Overload : 150 % M.R.
Compensated temperature range : - 10 °C to + 50 °C
Protecting rating : IP68 (IP67 from 100 to 200 tonnes)
Length cable : 5 m.
