TEMEX

Temperature Controlled Crystal Oscillator Spatial Flat Pack

Quartz

Ask for a quote Receive Documentation Contact the supplier

High performance TCXOs Flat Pack provide a combination of overall stability down to +/-1.5ppm, with low power consumption of 0,1W all over temperature range -40 up to +85C°, excellent phase noise. Major applications of this TCXO are transponders, GPS receivers, digital cards and down and up converters. TCXOs Space Flat Pack are manufactured in accordance with MIL-PRF-55310 (Class 1, type 3 and type 5, level S).

Technical details:
Frequency range: 5MHz to 150MHz
Case type: 20mm x 20mm or 25mm x 25mm
Frequency Range: from 10MHz to 150MHz
Operating Temperature Range: from -40°C to +85°C
Output Wave Form: sine 50 Ohms or square
Supply Voltage: +5V or 12V
Shock: 1000g, half sine 0,3ms
Random vibration: 50g rms from 20Hz to 2kHz
Radiation: TID 100 krad

OTHER PRODUCTS QUARTZ FROM TEMEX

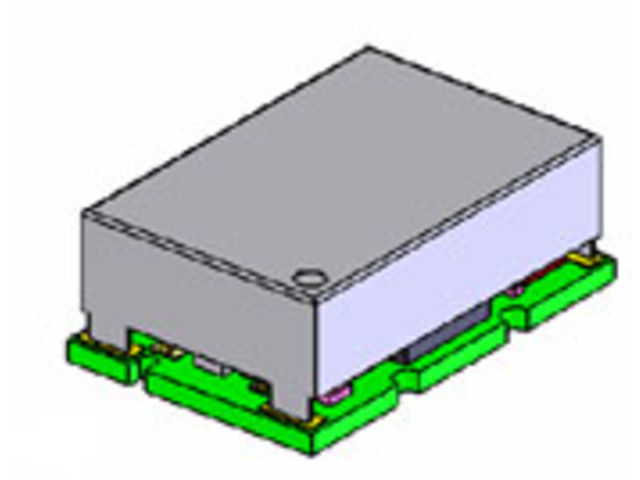

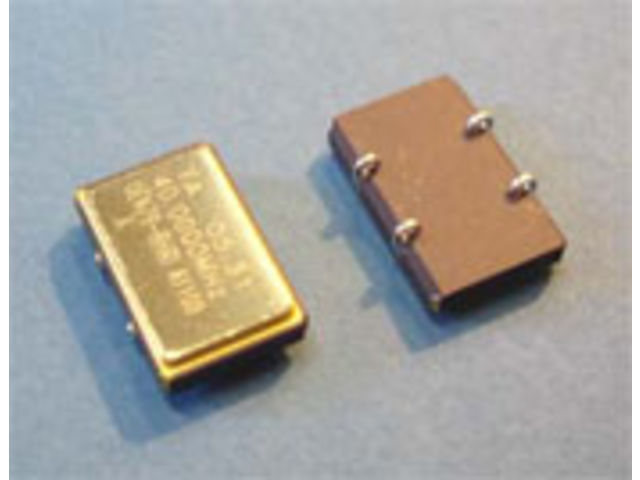

Crystal Oscillator HYBRID SMD
