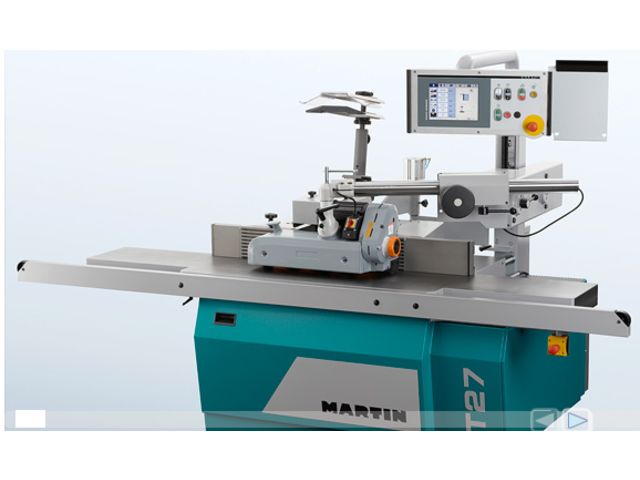

T27 "Fix" Spindle

On the T27 Fix, you can easily adjust the cutting height via the electronic controller and the cutting depth via handwheel according to the digital display. As soon as you „activate“ a tool, both values will indicate the actual position in relation to the table and fence jaws. By adding further controlled axes, you can upgrade the T27 Fix to a “profiling center” with up to 5 controlled axes. Every additional axis is fully integrated in the operating electronics and networked with the other axes, making it a true performer.

Ready to mould :

The standard features of the T27 Fix include an automatic star-delta starter, two EMERGENCY STOP buttons, lockable main switch, and electric wear-free spindle brake. A 5-pole socket with plug for connecting a power feeder is also in- cluded in the basic equipment. The machine is also supplied with a convenient switch to change the rotational direction of the spindle.

Options you will no longer want to live without :

For curved moulding operations, the fence can be removed and later remounted in seconds. With the optional folding support, you can lift the fence from the table and fold it to the back of the machine, thereby reducing expensive set-up time. Thanks to MARTIN’s exacting German tolerances, the time-consuming remounting of the fence is no longer necessary because of the superior mechanical fit. The cutting height is automatically referenced without having to be recalibrated.

For mortising jobs, the MARTIN sliding table is an ideal option for every T27 shaper. The sliding table features a heavy, robust design, a work table that can be turned to 45° (fence up to 65°) in both directions, and many other unique details make this option an indispensable aid for cutting difficult mortises and tenons.

The basic T27 features the DornFix system, the original MARTIN quick-change system. The Dornfix system allows the operator to change from a 30 mm to a 40 mm arbor in a matter of seconds. The optional ProLock system further facilitates quick tooling changes.
