SWIR InGaAs 512x1 pixels linear sensor - TLS512-10

Vision sensors

“ - Resolution 512 x1 pixels - 12.5µm pitch - High speed ( 78K lines/s) and low noise dark current 0,29pA at 25°C) - 12.5mm side CLCC housing - Operability >99,6%. ”

Ask for a quote

Presentation

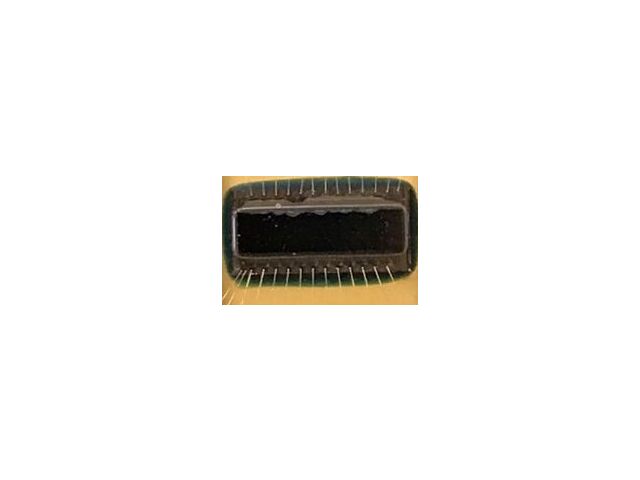

The TLS512 is a 512-channel high-speed SWIR linear image sensor based on advanced CMOS readout circuit design and InGaAs photodiode array technology.

With pixels based on CTIA architecture, it provides high linearity response over a wide dynamic range with low noise and has 2 analog output channels clocked at up to 20MHz.

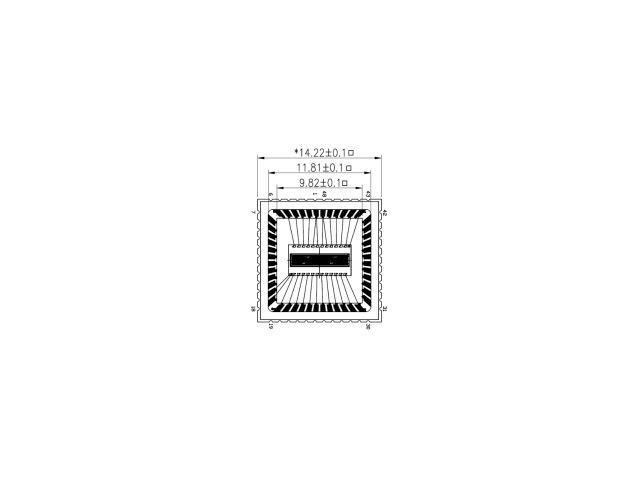

Its square pixels with a 12.5µm pitch offer a spectral response from 900 to 1700nm and a maximum scan speed of over 78,000 lines/s. Packaged in a ceramic package (CLCC), its footprint is a square of 14.2mm.

It is an ideal product for various SWIR line scan applications.

This sensor is particularly suitable for applications such as process control or sorting in the agricultural and food industries, semiconductor and photovoltaic cells, glass industry.

Technical features

Resolution 512x1 - pixel 12.5µmx 12.5µm Spectral band: 900-1700nm Maximum scan rate > 78,000 lines/s Low noise and high dynamic range Low dark current Compact 14.2mm CLCC housing
