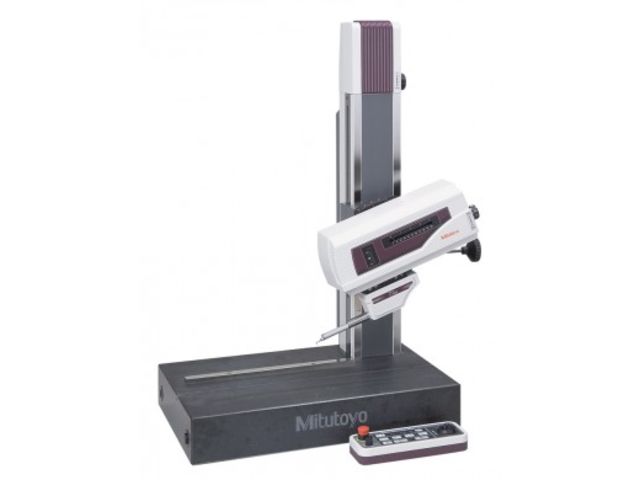

A Mitutoyo multifunctional surface roughness tester that provides highly accurate, high-level 3D analysis of fine contour, as well as conventional surface roughness measurement. The X-axis uses a ceramic drive unit guideway for best wear resistance, and high-accuracy glass scales to ensure reliable positioning and measurement. Features include a straightness compensation function, which improves the linear accuracy of the X-axis, particularly important in horizontal roughness parameters (S, Sm) that require high-accuracy X-axis travel; a circular compensation function operating on the vertical movement of the stylus; and a stylus-tip radius compensation function.

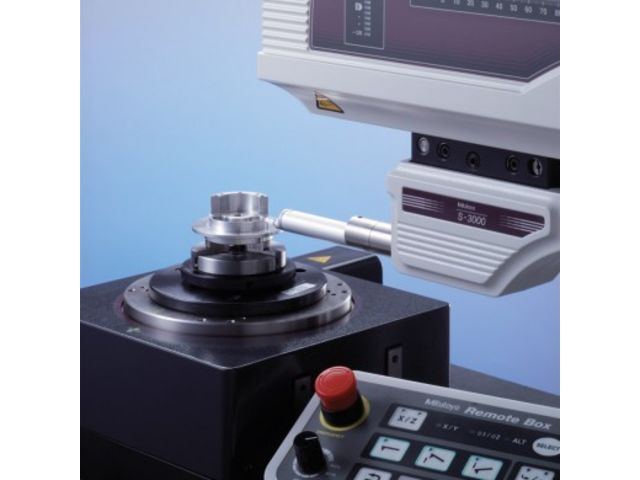

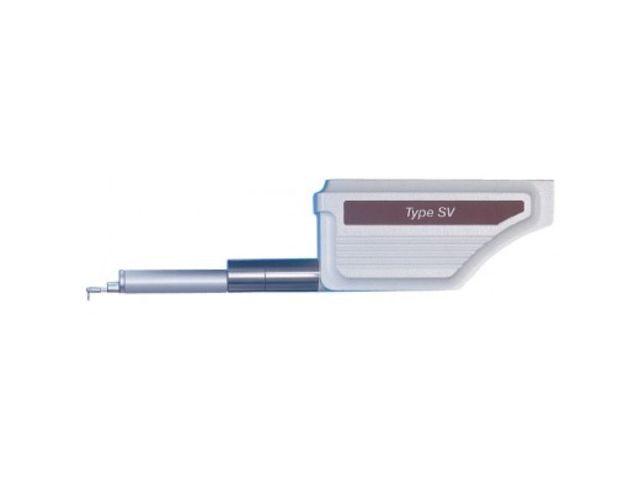

The stylus and the skid are easily replaced and optional styli and skids are available for a wide variety of roughness measurement applications. Supplied with an easy-to-operate remote box independent from the main unit, allowing positioning, measurement start/stop, stylus retraction, and other operations to be performed remotely. The drive unit up/down positioning and X-axis traverse can be fine controlled manually. Peripheral devices such as an auto-levelling table are available to enhance operability and automatic measurement. Includes the dedicated FORMTRACEPAK data analysis software package.
