Presentation

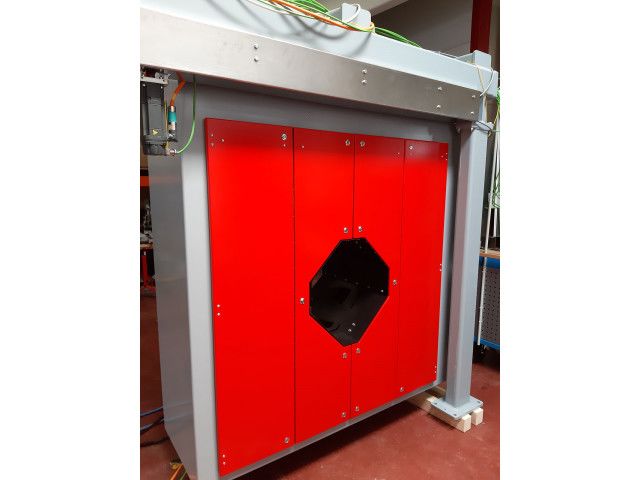

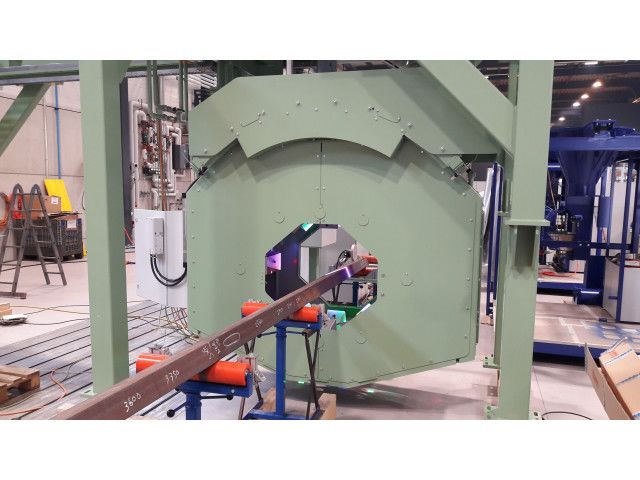

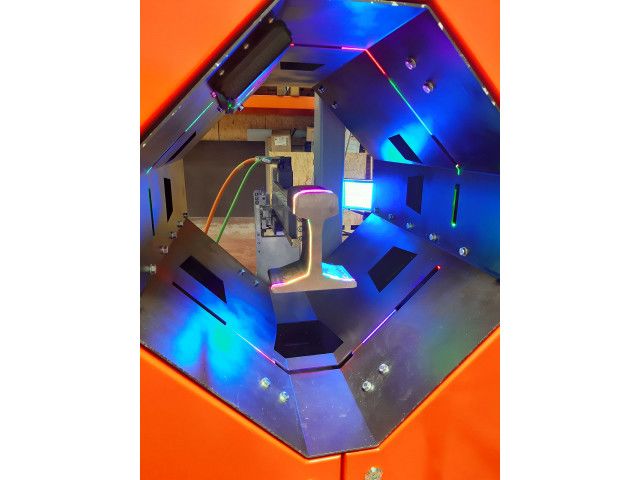

OSIRIS is a stationary, optical measuring system for inline control of dimensional accuracy and surface quality of long products. With state-of-the-art laser light cutting technology and high scanning rates, the OSIRIS systems offer a complete 3D reconstruction of the product. With the OSIRIS Hot version, up to 1,100 degrees hot long products can be analyzed. The measurement results are displayed in real time on the control terminal and thus allow early corrective action to increase throughput and product quality. The surface inspection function automatically detects and classifies deviations in the product surface (peeling, blow-outs, scoring, rolling etc.). In addition, profile cuts of the long product are simultaneously generated to check length dimensions such as width and height, various radii and angles. Different system sizes allow the measurement of large and small long goods.
