Subminiature Slide Switches

Ask for a quote

Presentation

Specifications:
Contact rating: max. 48 V AC/DC, 0,4 VA / max. 50 mA
min. 20 mV AC/DC, 1 ?A
Contact resistance: < 50 m?
Insulation resistance: > 500 M? at 250 V DC
Dielectric strength: 500 V, 50 Hz for the duration of 1 minute
Temperature range: – 20° to + 80° C
Mechanical life: minimum 60000 operations
Contacts: phosphor bronze, gold-plated over nickel barrier
Terminals: PC terminals, crimped, phosphor bronze, gold-plated over nickel barrier
Material: case: PBT, meets UL 94 V–0, washable
metal parts: nickel-plated brass
Mounting: on pc-board
Soldering conditions: auto-soldering – max.: 5 sec ± 1 sec., 260° C ± 5° C

OTHER PRODUCTS SOURCE INVERTER FROM KNITTER-SWITCH

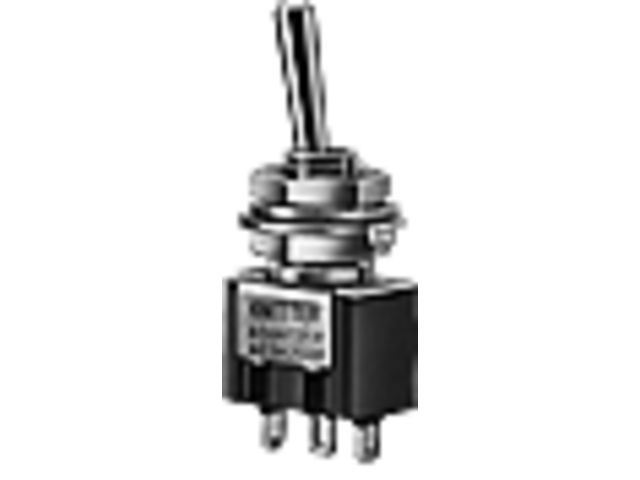

Miniature Toggle Switches with locking lever

Ask for a quote

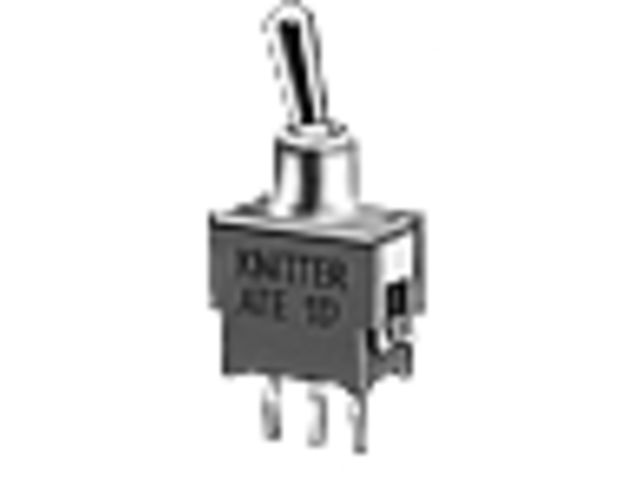

Subminiature Toggle Switches

Ask for a quote

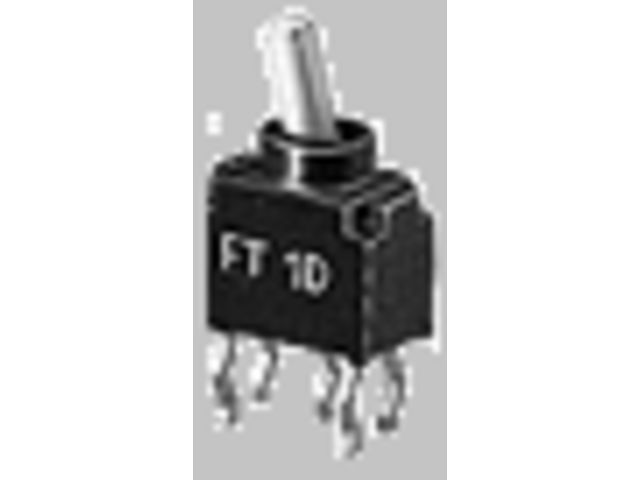

Microminiature Toggle Switches
