Submerged arc equipment MAXSA® 22 FEED HEAD

Designed specifically for hard automation applications, the MAXsa® 22 Feed Head delivers accurate wire feeding of large diameter submerged arc wires. Based on Lincoln’s proven gearbox and cast aluminum feedplate, the MAXsa® 22 model features a 40VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. A top speed of up to 500 ipm (11.43 m/min) can be achieved by changing the gear ratio.

Flexible Configuration – Can be used in single, tandem, Twinarc® or multiple arc applications.
Closed Loop Speed Control – Facilitates full control over starting, running and stopping wire feed speed.
IP23 Rated – Tested to withstand harsh environments.
Additional Gear Sets included – Used to change the speed ratio to match the requirements of your application.

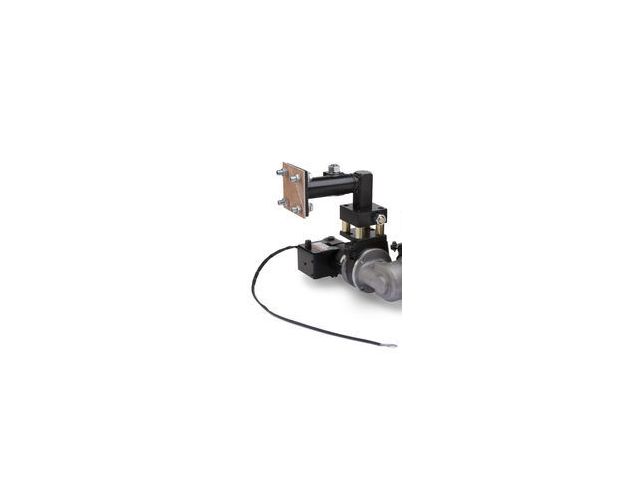

Multi-Axis Rotation – Rotational feed head adjustment in two planes allows flexible, accurate setup for fixturing or arc locating. Additional positioning flexibility can be achieved with optional horizontal and vertical lift adjusters.

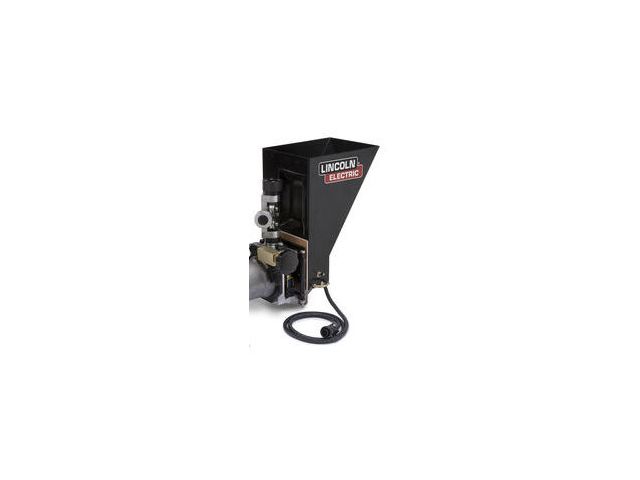

Standard Accessories – Including an adjustable wire straightener, cross-seam adjuster and electrical valve flux hopper and mounting bracket for TC-3 carriage.
Click here to go to the CAD File Downloads page

The MAXsa™ 22 is designed specifically for hard automation applications, the MAXsa™ 22 Wire Drive delivers accurate wire feeding of large diameter submerged arc wires. Based on Lincoln’s proven gearbox and cast aluminium feedplate, the MAXsa™ 22 model features a 32VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6mm) diameter solid wire. A top speed of up to 500 ipm (11.43m/min) can be achieved by changing the gear ratio.

Process controller - Provides clear dual digital display of set-up and weld modes, eight memories, AC controls, strike/start/end options, travel stop/start, and timers.
Lincoln’s Waveform Control Technology® - Offers the ability to select the right waveform for each application.
Severe Duty - Can be stored outdoors.
User-Friendly Controls – Can be adjusted on-the-fly to change welding parameters within the same welding mode
Controller with Digital Meters - Save procedures, apply procedure limits, and lockout any or all controls.
