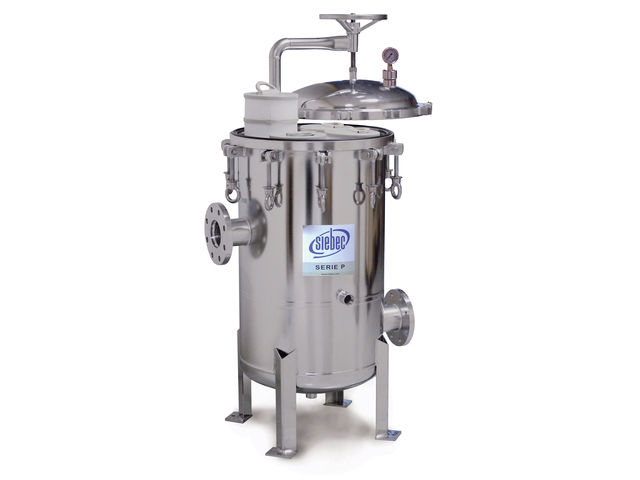

Stainless steel filter cartridge L-TECH
-
One or four cartridges models.
-
Other sizes are available upon request.
-
Material : SU304, SU316, SU316L.
-
Filtering element serial-mounted.
-
Fastening and sealing of the lid ensured by eye nuts, swing bolt.
-
Inlet / Outlet on line to facilitate integration.
Specification of the vessel.
L Series Maximum operating pressure : 10 bar @ 75°C. (design for 15 bar @ 100°C). Connections :
-
Inlet / Outlet flange : 2“ PN16.
-
Drain : 3/4“
-
Air vent / pressure gauge: 1/4“. P Series Maximum operating pressure : 7 bar @ 75°C. (design for 10 bar @ 100°C). Connections:
-
Inlet / Outlet flange : 3” PN16.
-
Drain : 1“.
-
Air vent / pressure gauge : 1/2”.
L Series L-TECH filtering element. Large filtration area:
-
5 m² - 20”
-
7,5 m² - 30“ P Series L-TECH filtering element (4 cartridges). Large filtration area:
-
20 m² - 20”
-
30 m² - 30”
Porosities available : 0,2 μm, 1, 2, 10, 20, 50, 100μm
* Other filtering element on request: plates, cartridges, filter bags.
