ST20 panel

Type B was developed to meet the specific requirements of the automotive industry. This high-performance clamping unit was designed for frequent, quick tool changes. The restricted guidance ensures...

Ask for a quote

Presentation

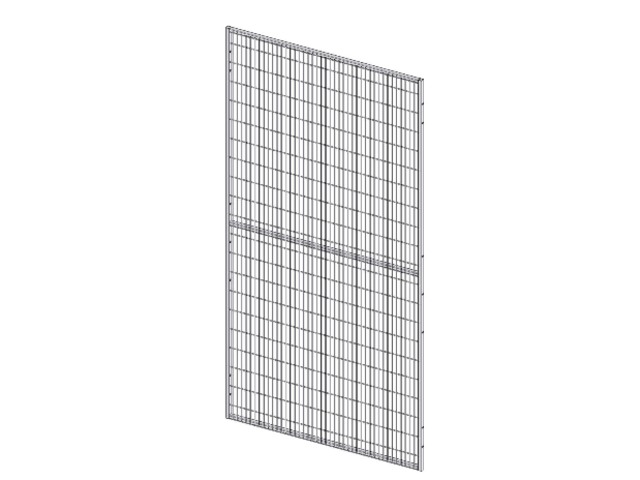

The ST20 panel is a lighter machine guard panel with a 19 x 19 mm frame. All horizontal wires are welded into the frame and the vertical wires are welded to the crossing tubes, creating a stable, strong and impact resistant panel.

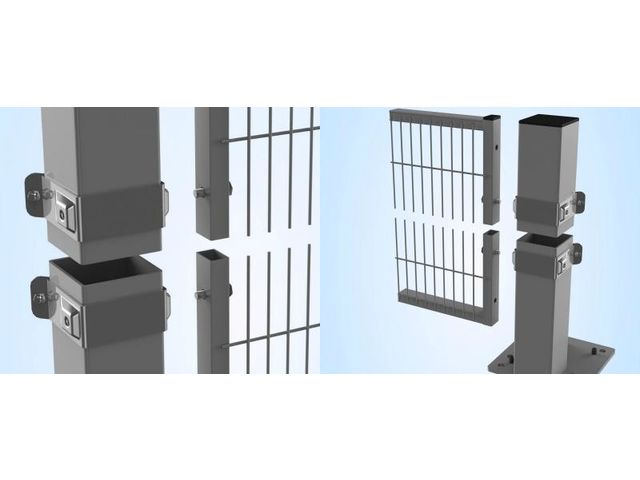

The ST20 panel is tested to withstand an impact of up to 1600 joules together with our Smart Fix system. The narrow mesh size allows a safety distance of 120 mm from the hazard.

Standard panels are available in 7 widhts, from 200 mm to 1500 mm to fit system height of either 2200 mm or 1400 mm. TROAX’s grey standard colour provides the best visibility throughout the hazard zone, but panels can be supplied in any colour of your choice.
