Spyglass Open Path Combustible Gas Detector

Spyglass Open Path Combustible Gas Detector - Teledyne Gas and Flame Detection

Spyglass Open Path Combustible Gas Detector - Gas sensors

Spyglass Open Path Combustible Gas Detector - produit présenté par Teledyne Gas and Flame Detection

Spyglass Open Path Combustible Gas Detector

Gas sensors

“ Multi-combustible gas detection Range of 200 meters Low maintenance costs Easy detector communication Easy configuration and troubleshooting Automatic heated optics Built-in event recorder Stainless steel construction Long warranty ”

Ask for a quote

Presentation

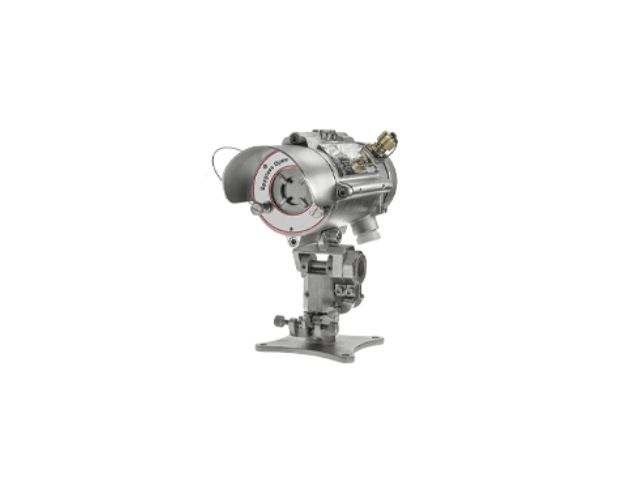

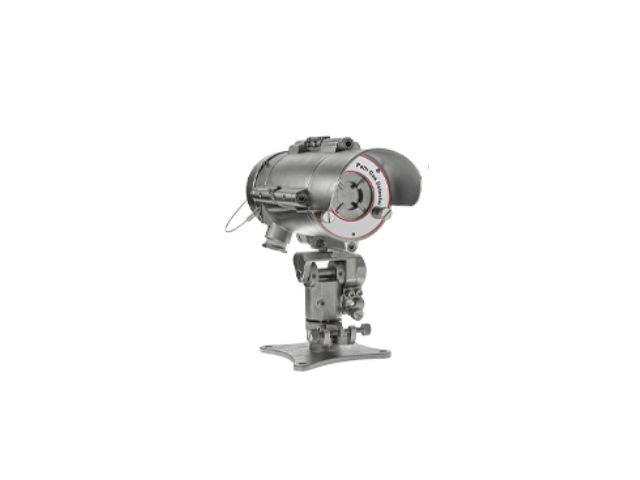

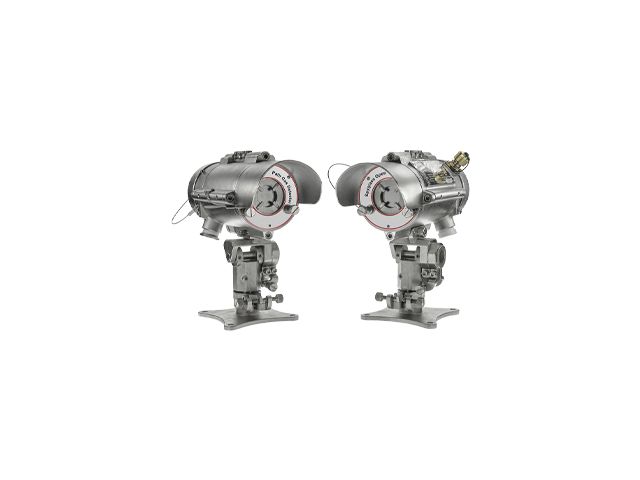

The Spyglass system detects hydrocarbon gases by analyzing the absorption of radiation caused by gases in the atmosphere and comparing it to background atmospheric absorption. This is accomplished between a pair of units: a Flash Source and a Detector that can monitor a distance of up to 200 meters.

Spyglass Gas Detectors are robustly designed and can handle the toughest environments: 316L stainless steel housings that meet IP66/IP68 and NEMA 250 6P egress standards; circuit boards epoxy coated for protection; MIL-C-810C testing for humidity, salt, fog, vibration, mechanical shock and temperature extremes; and SIL-2 approval per IEC61508 is a final statement in reliability.
