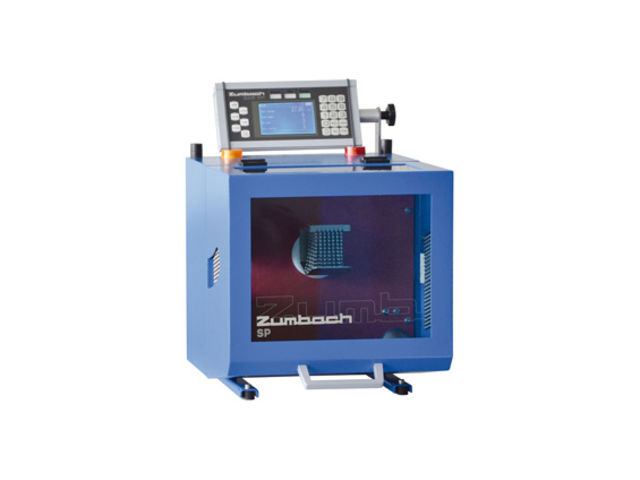

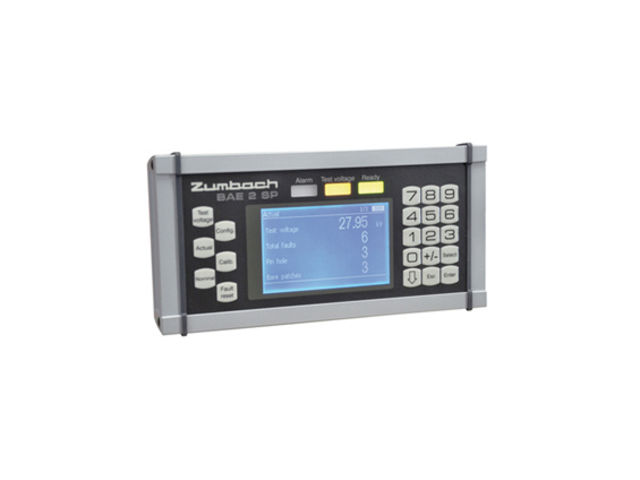

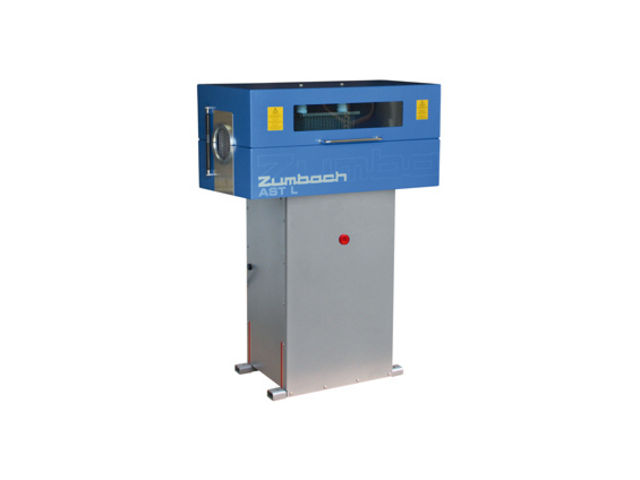

Spark Tester AST L / AST H / DST

Spark Tester AST L / AST H / DST - Zumbach Electronic AG

Spark Tester AST L / AST H / DST - Data loggers

Spark Tester AST L / AST H / DST - produit présenté par Zumbach Electronic AG

Spark Tester AST L / AST H / DST

Data loggers

Ask for a quote

Presentation

Dielectric Testing with the Spark Test Principle (Dry Test):In-line fault testing on single conductors and jackets during the extrusion or rewinding process has become standard procedure today. ZUMBACH® Spark Testers can be used to test the most diverse range of cable products as per international standards, like IEC 62230, UL 1581, UL 2556 and further standards. Data ports allow for easy integration with quality control systems (e.g. USYS). Important Features: Wide range of test voltages: 3…40 kVac / 50 Hz 0.5…15 kVac / 3 kHz 1…28 kVdc/50 Hz Fault detection according to requirements given in IEC 62230 Wide range of electrodes up to a diameter of 200 mm (7.8 in.) and in compliance with UL 1581, UL 2556 and further standards In-line fault testing on single conductors and jackets during the extrusion or rewinding process has become standard procedure today. ZUMBACH® Spark Testers can be used to test the most diverse range of cable products as per international standards, like IEC 62230, UL 1581, UL 2556 and further standards. Data ports allow for easy integration with quality control systems (e.g. USYS). Important Features: Wide range of test voltages: 3…40 kVac / 50 Hz 0.5…15 kVac / 3 kHz 1…28 kVdc/50 Hz Fault detection according to requirements given in IEC 62230 Wide range of electrodes up to a diameter of 200 mm (7.8 in.) and in compliance with UL 1581, UL 2556 and further standards Fault Detection on Plastic Tubes
