ProMinent France S.A.S

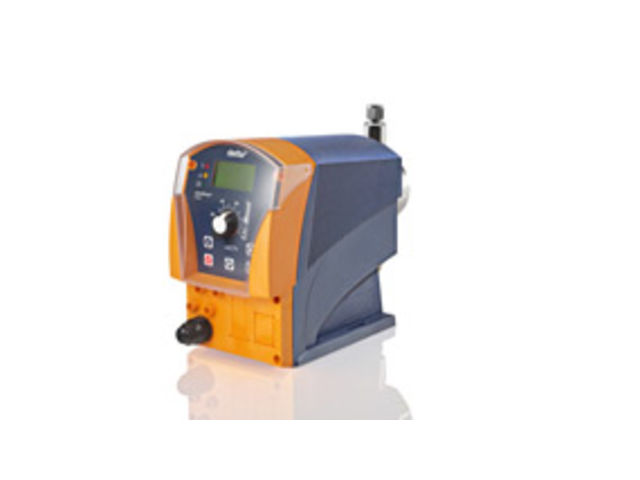

Solenoid Driven Metering Pump delta®

Electromagnetic dosing pump

This product is temporarily unavailable.
Think about consulting similar products.

“ - Adjustment of the capacity directly in l/h - Adaptation to existing signal transducers by external control viapotential-free contacts with pulse step-up and step-down - External control via 0/4 – 20 mA standard signal with adjustable assignment of signal value to stroke rate - Organise work processes conveniently with the optional process timer. The alternative to timers or PLCs. - Optional PROFIBUS® interface for connection to process control systems - Suitable for use with almost all liquid chemicals, thanks to the available material combinations PVDF, clear acrylic and stainless steel - Virtually wear-free solenoid drive: overload-proof and economical - Everything in sight and under control: illuminated LED display and 3-LED display for operating, warning and error messages - Reporting of hydraulic error statuses, blocked points of injection, ruptured metering lines and air and/or gas in the dosing head, which the integrated monitoring system optoGuard® detects - Automatic bleed function - Maximum dosing precision by compensation of pressure fluctuations - Also ideal for continuous micro-metering from around 6 ml/h ”
Ask for a quote Receive Documentation Contact the supplier

Virtually an all-rounder and just the right solution for exacting requirements. A high-end product with a wide range of settings and control options.

A high-end diaphragm metering pump: The solenoid driven metering pump delta® is the first of its kind to have a regulated solenoid drive. Virtually wear-free, extremely economical and with a self-bleeding dosing head design.



- External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 99:1 to 1:99 -Batch operation with max. 65,536 strokes/start pulse -External control via 0/4 – 20 mA standard signal with adjustable assignment of signal value to stroke rate -Stroke rate adjustment in 1 stroke/hour steps of 0 to 12,000 strokes/h and/or 200 strokes/min -Stroke length continuously adjustable between 0 – 100% (recommended 30 – 100%) -Connector for 2-stage level switch -Dosing monitor input with adjustable number of tolerated defective strokes -Optional optical diaphragm rupture indicator detects droplets behind the diaphragms -Optional 4 – 20 mA output for remote transmission of stroke length and stroke rate -"Concentration input" option for volume-proportional metering

all industries and integrated into automated processes cooling water treatment
