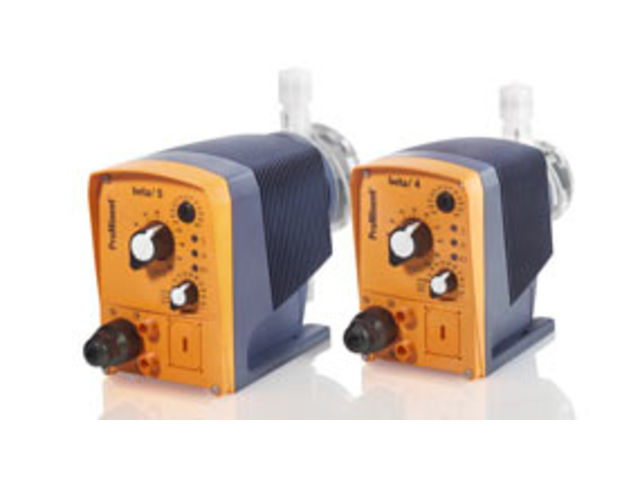

Solenoid Driven Metering Pump Beta®

This product is temporarily unavailable.
Think about consulting similar products.

“ - Simple adjustment of metering capacity via stroke rate and stroke length - Adaptation to existing signal transducers by external control via potential-free contacts with pulse step-up and step-down - Suitable for use with almost all liquid chemicals thanks to the available material combinations: PP, PVDF, clear acrylic, PTFE and stainless steel - Self-bleeding dosing head design in clear acrylic/PVC and PP - Virtually wear-free solenoid drive: economical and overload-proof - Economical operation with up to 50% energy-savings, thanks to higher pump efficiency - Everything in sight and under control: 3 LED display for operating, warning and error messages ”

Ask for a quote

Presentation

All-purpose solenoid metering pump for metering liquid media in water treatment and chemical processes: Solenoid driven metering pump Beta®. Cost-effective, overload-proof, adaptable to existing signal transducers.

Technical features

- External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64 - Stroke rate adjustment in 10% steps of 10 - 100% corresponds to 18 - 180 strokes/minute - Continuous stroke length adjustment between 0 - 100% (recommended 30 - 100 %) - Connector for 2-stage level switch - Wide-ranging electrical connection: 100 - 230 V, 50/60 Hz - Optional relay module, can also be easily and reliably retrofitted - Design for low voltage 12-24 V DC

Usage scope

water treatment and chemical processes
