Solar Edge - SM-332-TA

Cutting table

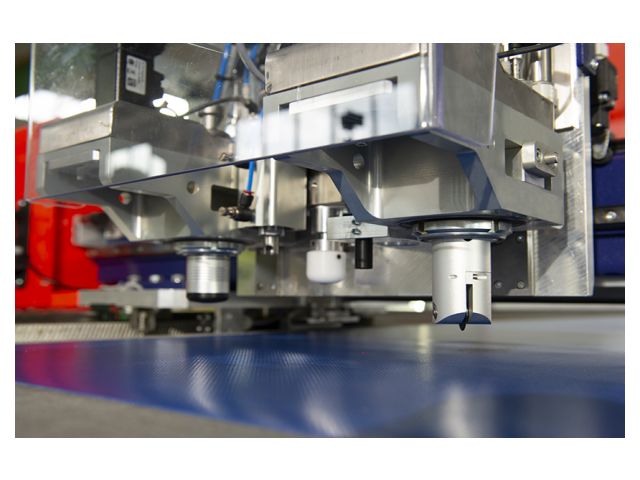

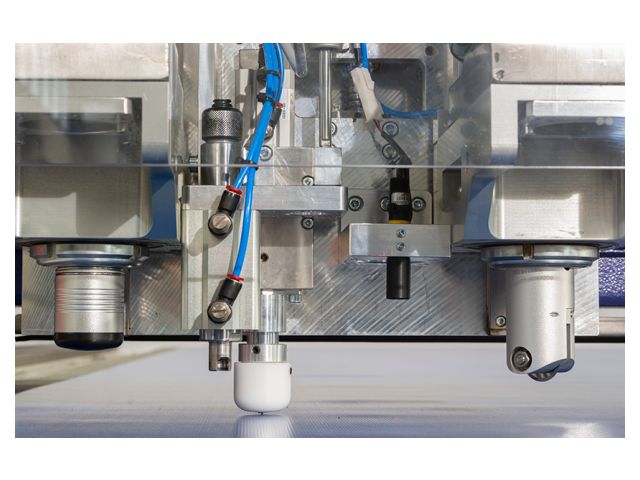

“ High speed, fast acceleration Specifically developed to cut a broad selection of materials Wide range of available cutting and marking tools Plug & Play tool change system for maximum efficiency Industrial conveyor belt in felt or polyurethane Continuous cutting cycles for high volume production output Great cutting precision Cutting and marking of large and very large patterns in a limited footprint Vacuum power with sectioned areas for total fabric control Suitable to process standard or jumbo rolls Edge control and fabric tension control on jumbo rolls Motor driven conveyor belt Precision on large patterns with synchronized belt and fabric motion On board touch screen control panel Industry 4.0 ready ”

Ask for a quote

Presentation

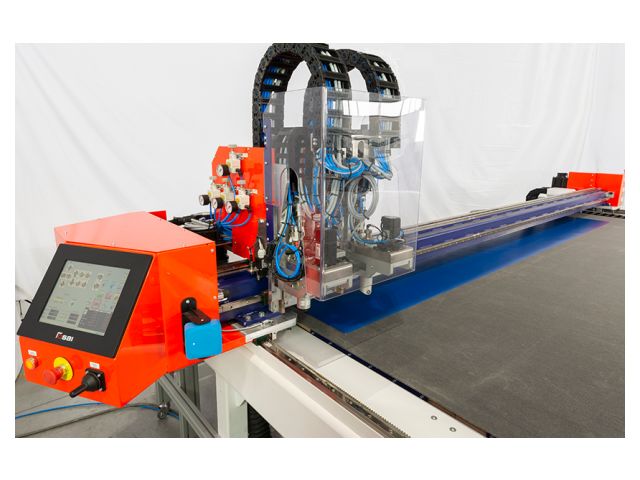

Multiple Tool Digital Cutting Plotter with Conveyor

The usable cutting area is available in multiple sizes allowing to process small to extra-large fabrics rolls.

The SM-332-TA reaches speeds of up to 90 m/min with an acceleration of 1G with a motion repeatability +/- 0,1 mm.

The cutting area is sectioned to concentrate the vacuum power in specific areas.

Pressure bar and side grippers for synchronized movement of the conveyor with the fabric.

Motorized conveyor belt to maximize cutting accuracy on long lengths.

The SM-332-TA can be equipped with an optional motorized unwind system for large rolls with automatic material alignment control and correction and a digital tension control system.

Usage scope

Tension structures, Tents and shelters Truck or swimming pool covers, Tarpaulins Pergolas, Shade sails Conveyor belts Containments bladders, Tunnels
