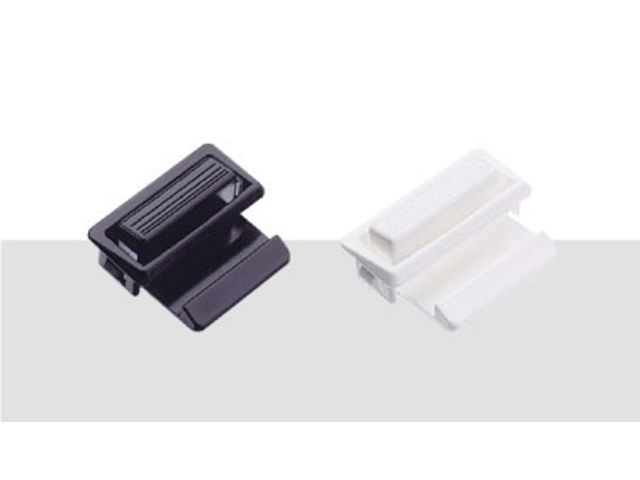

Snap-In Latches

Product Features and Benefits
Unique molded acetal latching mechanism flexes during push-to-close operation, enabling latch to work with sliding panels on the same plane, or with mating panels on the front of a clamshell-type enclosure.

Molded latch housing snaps into rectangular hole for easy installation
Compact housing is just 41 mm (1.62) wide and protrudes just 6.5 mm (.26) above panel surface
Fits panel thicknesses from 1 mm (.040) to 3.2 mm (.125)
Use 6 mm (.236) return bends on the mating panels to form the catch for the latch mechanism.
Non-corrosive construction

Available Options

Available in choice of black or white

Standards and Specifications

Maximum working load of 90N (20 lbs.)
Flammability Rating: UL94-HB

Industry Applications

Aerospace
Appliance
Exhibits/Signs
Food Equipment
HVAC
Medical
