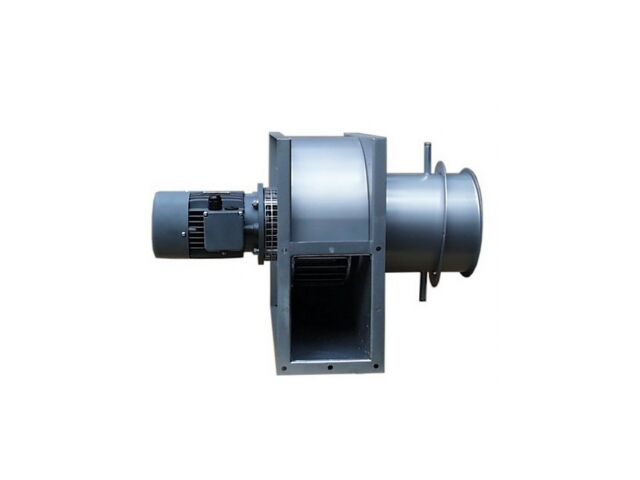

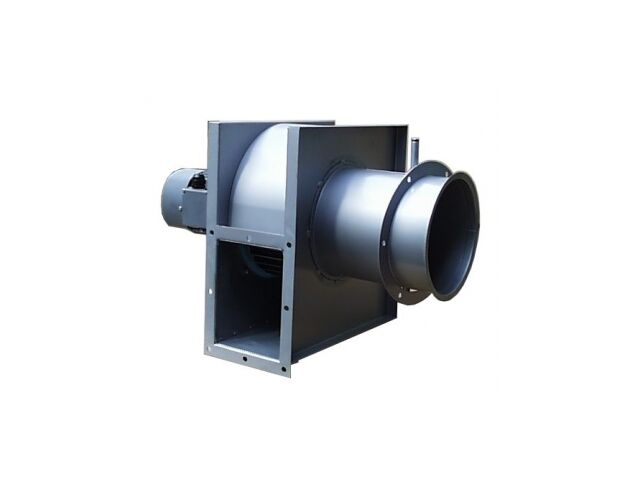

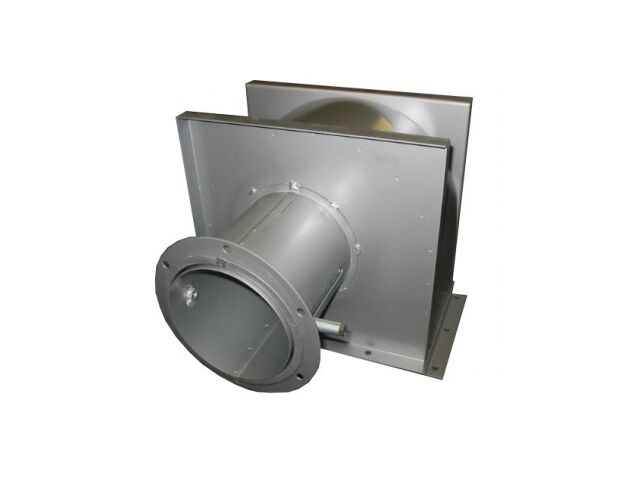

Draught accelerator, centrifugal forward curved and pressed blades wheel TUE or special; tube housing, inlet and outlet in line, steel or stainless steel.
The accelerators AIRAP are designed to be incorporated by nesting in a duct with a diameter of 153, 180, 200, 250 mm.
The range of AIRAP accelerators can fit heaters with a capacity of 5 000 to 350 000 kcal / h, providing a rate of 40 to 1 000 m3 / h, up to a temperature of 250 degrees C.
The accelerator is provided either by drawing mixed (natural and mechanical drawing combined), version 1, or entirely mechanical (establishment of a screen printing obturant natural), version 2 .
Particularly silent (53 dBA noise level or 65 dBA) and easy installation, the accelerator ATC can also be used for ventilation of rooms such as kitchens, bathrooms, etc.
Under construction standard, the device is made of sheet steel protected by a high temperature aluminum paint. Upon request, it can be delivered in stainless steel or receive special protection (Rilsan, Epoxy ...).
To regulate the circulation, provide a moderator placed upstream of the accelerator.
Use :
Extraction of fumes or gas for hot boilers, generators forced air, incinerators, furnaces, ovens, hot air heaters, tunnels, heat recovery, surface treatment equipments…
