Single-station infrastructure scale FX / TWIN

Weighing systems

Ask for a quote

Presentation

Bending under carrier station load is not detrimental to simple handling but becomes a source of error when we want to weigh.

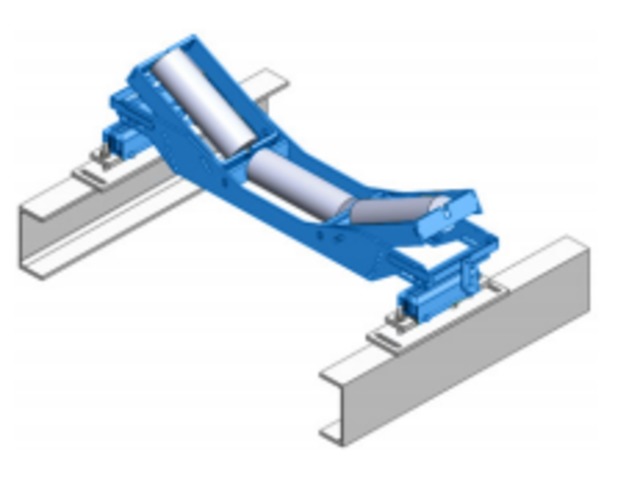

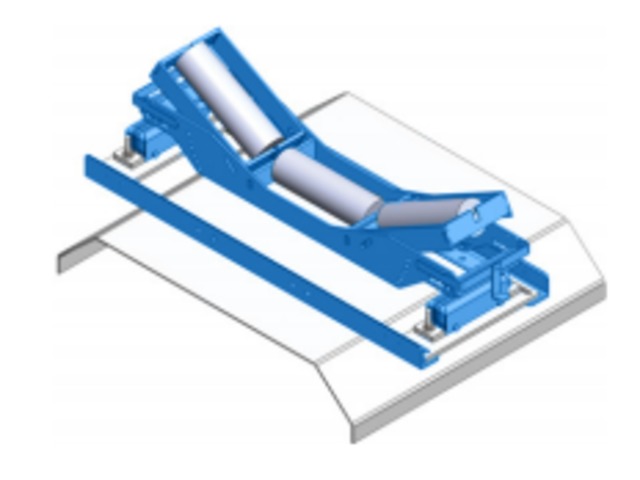

The FX / TWIN single-station infrastructure scales are specially designed for continuous weighing and combine rigidity and lightness in order to transfer the entire weight onto the strain gauge sensors. If the need for precision or accuracy is less important, it is possible to reuse a conveyor station and install a MBW modular scale without specific weighing infrastructure.
Taking these elements into account results in a rugged and reliable totalizing scale that can be installed on any type of conveyor and in the most severe operating conditions.

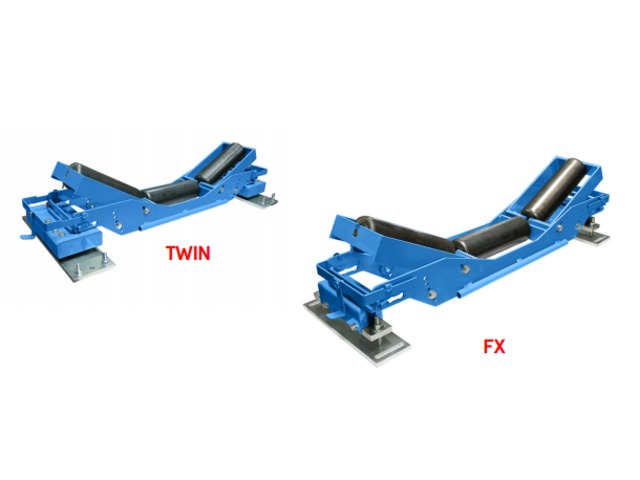

The TWIN model is particularly suitable for extra wide conveyors or large grain size products.

FX and TWIN single-station scales are designed for weighing bulk products in the extractive, mineral, cement, fertilizer or phosphates production, agri-industry, sugar refinery, timber, recycling industry market sectors and other activities using belt conveyors. The scales can be installed in a new conveyor or can easily replace an existing conveyor roller station. These continuous weighing infrastructures can be combined with PRECIA MOLEN I 400 BS electronics. The accuracy of these scales can be from +/- 0.5 % to +/- 1 % for a conveyor having a belt width up to 1200 mm for FX model and beyond for TWIN model.
