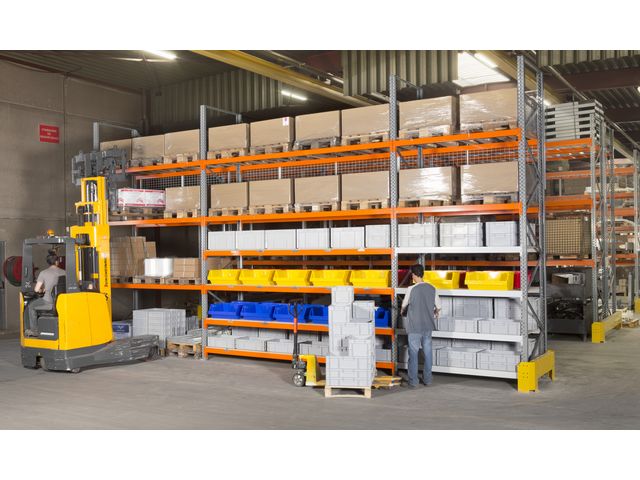

Shelving with longitudinal beams and EPSIRACK shelves | ManOrga

• Technical solutions developed for better optimisation of your storage according to the weights and packaging of your products.
• 2 frame profile sections to meet all the requirements of your installations
• 2 types of perforations on the frame uprights to increase the possibilities of using different beam sections on the same shelving in order to meet all your storage needs, regardless of the weight of your pallets or products.

For storing heavy palletised or non-palletised loads

Design and calculation method certified in accordance with the EN15512, EN15635, EN15620, EN15629 and EN15878 standards, guaranteeing you will be offered complete safety and excellent quality.

AN INNOVATIVE SYSTEM FOR A WIDE RANGE OF APPLICATIONS

• Shelving uprights (depending on configuration) :
  • T175 profile, 80x70x1.75 mm section
  • Perforated every 50 mm

• Industrial shelving braces :
  • Galvanised “C” profile 30x25 mm, to be bolted

•  EPSIRACK shelving footplates :
  • Galvanised steel sheet 160x112x4 mm, with 14 mm diameter perforations
  • Frames must be fixed to the floor to ensure completely safe use of the shelving.

•  Dimensions of shelving for heavy loads:
  • Heights: up to 6 metres in increments of 500 mm
  • Depths: 750, 900, 1100 mm

•  Load capacities :
  • Up to 9 tons per frame depending on configuration and use

•   Finish :
  • Sendzimir galvanised.

• EPSIRACK sections:
  • 80x50x2 mm
  • 100x50x2 mm
  • 120x50x2 mm

• Load capacities of shelving for heavy loads :
  • Up to 1 ton per pallet (depending on configuration and type of beam)

• EPSIRACK connectors:
  • Welded beam ends with 7 anchor points for hooking the beam into the perforations of the frame uprights.

• Shelving safety pin:
  • For locking the beam in place on the frame upright and avoiding accidental unhooking.

• EPSIRACK finish:
  • Epoxy paint, orange RAL 2004.

• Tubular, mesh or electrozinc wire shelves:
  • The shelves allow storage of non-palletised items.
  • They meet the safety standards and requirements of sprinkler type fire protection systems and maintain brightness in warehouses.

•  Frame column guards on the EPSIRACK industrial shelving:
  • The column guards protect the angled or contoured frame shelving.
  • They prevent deformation of the frames and limit the effect on the overall structure in case of impact.
  • For completely safe use of your shelving.
  • Recommended where handling equipment is used

•  Anti-collapse systems :
  • For effective protection of gangways and goods.
  • Mesh panel 50x70 mm welded to tubular structure.
  • The panel frames are fixed onto the corners at the back or onto the sides of the shelving.
  • The panels are assembled in a “brick wall” arrangement.

•  Mesh doors for the shelving:
  • Secure and practical equipment for effective delimitation and protection of bays.
  • Double leaf doors H. 1100 or 1600 mm for fitting to levels of length 2700 mm.
  • Can be padlocked.
