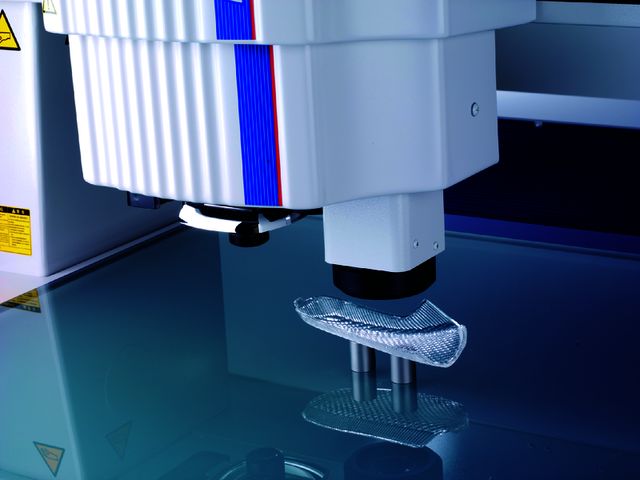

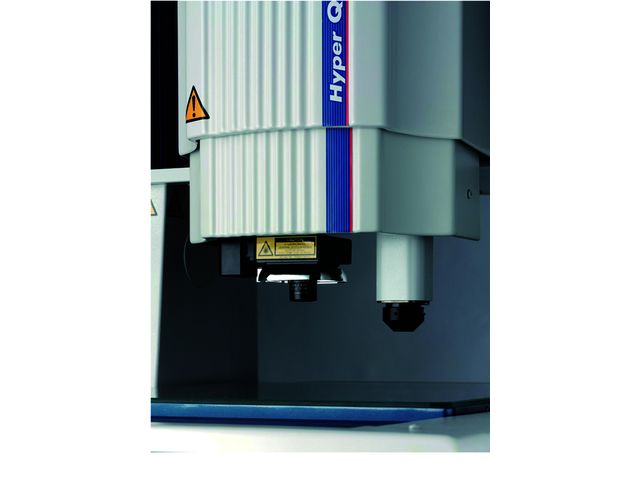

The Quick Vision HYBRID type 4 is a multi-sensor machine that enables the topography of the surface and the thickness of transparent objects to be measured.
The measuring range of the scanning sensor is 0-1200 µm.
Effective even for high inclination angles both of mirrored surfaces and diffuse surfaces. Maximum measurable inclination angle : ±80° (diffuse surface).
Achieves high resolution and high accuracy height measurement by the wavelength confocal method using axial chromatic aberration.
The automatic light intensity control provides reliable measurements even when reflectance of the measured surface changes during measurement.
