Sensor for T-slot cylinders : MZT8-2V8-N-KWB

Magnetic position sensors

Ask for a quote

Presentation

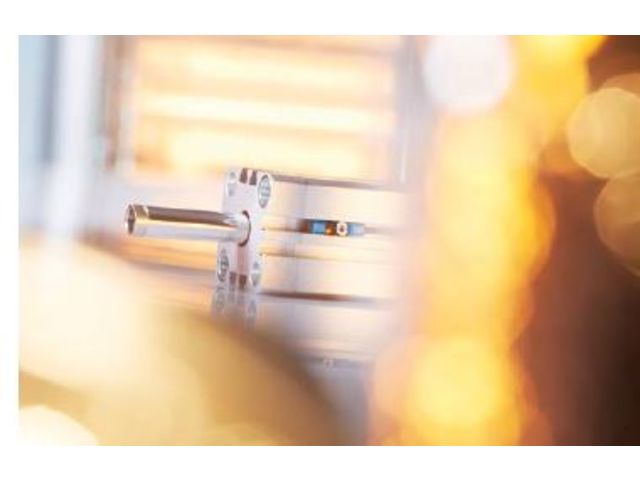

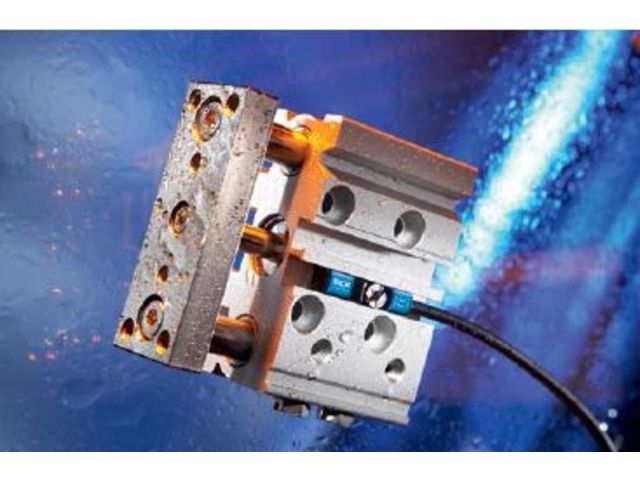

The MZT8 ATEX magnetic cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators in explosion-hazardous areas. The NAMUR version meets the most exacting standards and fulfills the requirements of the highest ATEX category 1D, 1G (dust and gas).

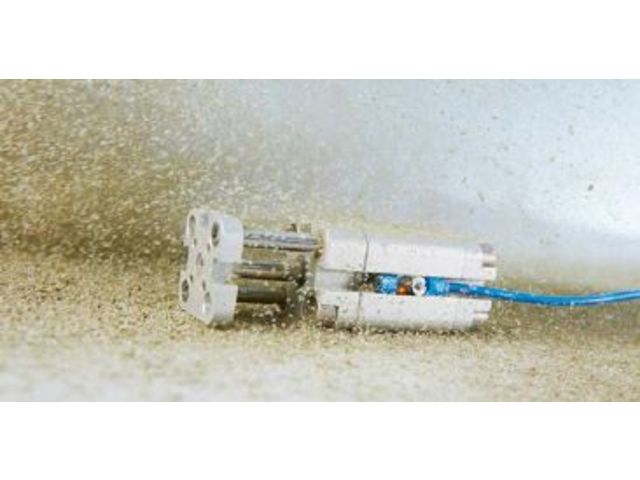

As such it satisfies the requisite conditions for use in areas in which the atmosphere is explosive permanently, for prolonged periods of time, or frequently. SICK has also versions in ATEX category 3D, 3G for use in areas with a lower risk of explosion. These different explosion-protected variants of the MZT8 ATEX are suitable for use in silo hatches, elevators, mills, or conveyors.

At a glance

Can be used in all standard cylinders, linear slides, and grippers using the T-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders, and cylinders with a dovetail groove
Drop-in mounting from above simplifies handling and assembly
Locking screw combines an Allen key and slotted screw
Variants fulfill the requirements of ATEX categories 1D, 1G and 3D, 3G
Very short sensor housing for use in short stroke cylinders
Enclosure rating: IP 67

Technical features

Housing length : 24 mm Power consumption : 10 mA Enclosure rating : IP67 Supply voltage : 8.2 V DC ... 20 V DC Ambient operating temperature : -25 °C ... +80 °C Shock and vibration resistance : 30 g, 11 ms / 10 ... 55 Hz, 1 mm

Download the complete technical features
