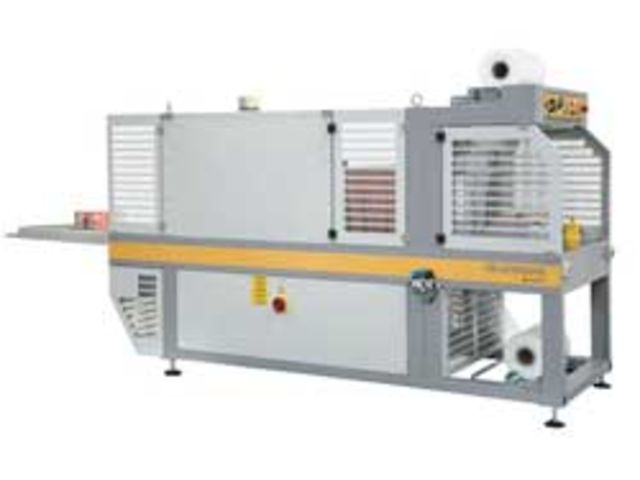

Semi-automatic single-block sleeve wrapper: F700

Pre-assembling pneumatic scraping pusher on stainless steel plate
- Hot-bar 700 mm pneumatic activated sealing bar with safety system
- Sealing bar temperature control with Derived Integrated Proportional electronic thermo-regulator with threshold of alarm (till when the F700 doesn't reach the exercise temperature it doesn't work in automatic)
- Polyethylene flat sheet shrink film reels max sizes:
680x350 WxD mm - 35/100 my thickness
- Sealing bar obstacle detection safety photocell
- Opening passage under the sealing bar 380 mm
- Work bench height 850 mm. +- 25 mm.
- Mechanical package press
- Interchangeable out feed dead plate beyond the sealing bar
- Motorized top & free bottom reel film unwinding system
- Shrink tunnel 1.200 mm chamber length isolated with rock’s wool and heated by 6 resistances 2000 watts.
- Opening passage 600 x 400 (height) mm.
- Forced ventilation with the recycle of the air
- Tunnel temperature control with Derived Integrated Proportional electronic thermo regulator with threshold alarm (till when the exercise temperature is not reached the machine doesn’t work in automatic)
- External regulation of the air flow interior shot the chamber tunnel
- Motor-reducer driven tunnel steel net conveyor with side driving chains

When the F700 stops, the tunnel air flow ventilation is maintained till the internal tunnel temperature is around 80°. Only then the machine can be switched OFF.

- Manual or semi-automatic cycle selector
- “Step by step cycle for heavy products with the tunnel conveyor stop during welding (while the ventilation is maintained)
- Control panel mounted on the machine
- Installed power 14.5 kW
- Pneumatic feed 6 bar
