Segmented wheel dryers : ATON plus VS

Adsorption dryer

Ask for a quote

Presentation

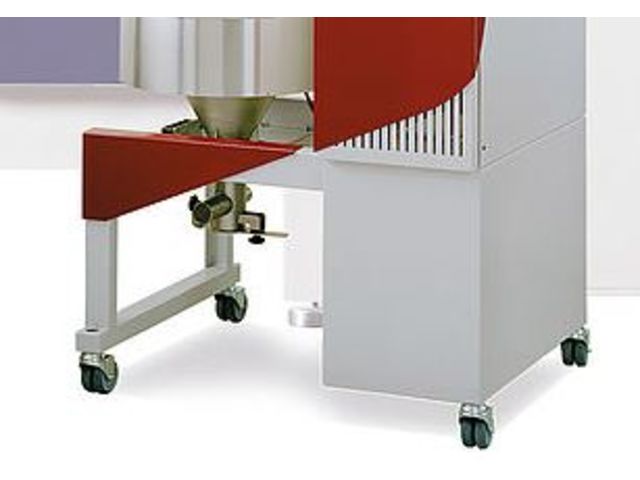

The VS compact dryer option for the ATON plus allows for the integration of a vacuum blower in the frame under the drying unit. Many conveying units can be connected to this blower. Thus maximum flexibility is achieved.

»» Maintenance Free Vacuum Blower
A maintenance free vacuum blower with 3-phase motor supplies material on request to either the processing machine or the drying hopper.

»» Just-In-Time Förderung
A sensor at the loader determines the minimum material storage and results in immediate conveying in case of material shortage.

»» Integrated Dry Air Conveying

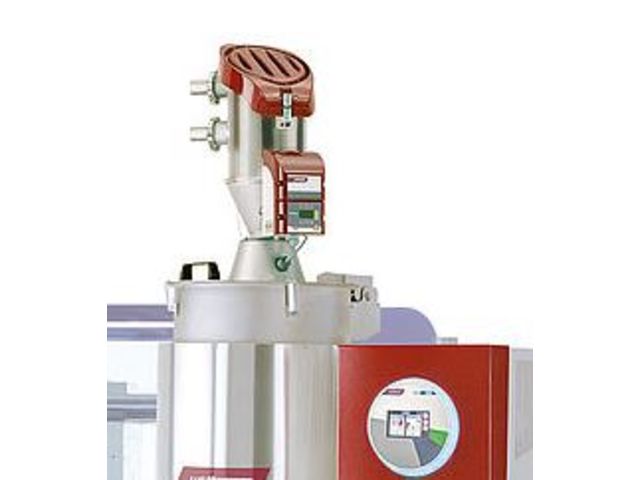

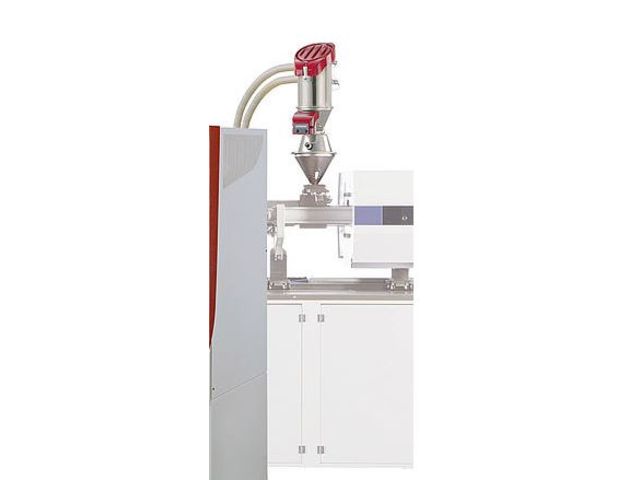

The material loading to the molding machine is accomplished via closedloop dry air to a receiver with a glass cylinder for visual inspection.

»» Central Dust Separation and Collection
Easily accessible for simple cleaning.

»» Simple Operation
Dryer and conveying units can be controlled and operated individually.
